G35 Sedan V35 2003-06 Discussion about the 1st Generation V35 G35 Sedan

Exhaust Manifold Bracket Repair

Thread Tools

Search this Thread

Rate Thread

Old Oct 19, 2022 | 10:48 AM
  #1
G35Wheelz's Avatar
Thread Starter
|
Registered User
Joined: Oct 2022
Posts: 2
Likes: 0
Sedan RWD
Exhaust Manifold Bracket Repair

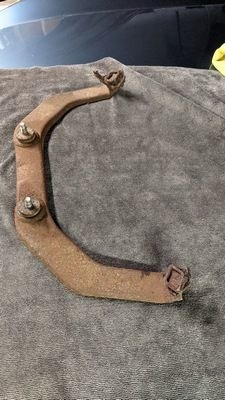

The Exhaust manifold bracket has rusted out at the manifold.

What is the fix for this? There is basically nothing on the manifolds to reattach it.




Reply
Old Oct 19, 2022 | 11:23 AM
  #2
MikeG35Coupe's Avatar
Registered User
20 Year Member
Liked
Loved
Community Favorite
iTrader: (2)
Joined: Dec 2003
Posts: 677
Likes: 89
From: Rhode Island
One owner 2004 G35 Coupe 6MT
That brace attaches the transmission to the catalytic converters, not the exhaust manifolds. It's tough to tell from your image but it appears to have remnants of the cat mounts still attached. They may have just broken off at the cats.

As for a fix... Weld them back to the cats. You could also buy new cats, but then you would need to be able to get the remnants off the brace or just buy another brace.

Edit: It just occurred to me that you could be running test pipes. I have no idea if those come with tabs/mounts for that brace. I know the aftermarket cats that I've looked at do come with them.


Last edited by MikeG35Coupe; Oct 19, 2022 at 11:28 AM.
Reply
Old Oct 19, 2022 | 01:34 PM
  #3
G35Wheelz's Avatar
Thread Starter
|
Registered User
Joined: Oct 2022
Posts: 2
Likes: 0
Sedan RWD
Originally Posted by MikeG35Coupe
That brace attaches the transmission to the catalytic converters, not the exhaust manifolds. It's tough to tell from your image but it appears to have remnants of the cat mounts still attached. They may have just broken off at the cats.

As for a fix... Weld them back to the cats. You could also buy new cats, but then you would need to be able to get the remnants off the brace or just buy another brace.

Edit: It just occurred to me that you could be running test pipes. I have no idea if those come with tabs/mounts for that brace. I know the aftermarket cats that I've looked at do come with them.
They completely rusted off the Cats...just a nub left
Can a new mount be welded onto the CAT? I thought it looked like cast iron...






Reply
Old Oct 19, 2022 | 02:36 PM
  #4
MikeG35Coupe's Avatar
Registered User
20 Year Member
Liked
Loved
Community Favorite
iTrader: (2)
Joined: Dec 2003
Posts: 677
Likes: 89
From: Rhode Island
One owner 2004 G35 Coupe 6MT
Originally Posted by G35Wheelz
They completely rusted off the Cats...just a nub left
Can a new mount be welded onto the CAT? I thought it looked like cast iron...

They look like steel to me but I could be mistaken.

Reply
Old Oct 20, 2022 | 10:42 PM
  #5
cleric670's Avatar
BANNED!!!
Joined: May 2017
Posts: 14,837
Likes: 2,497
From: Washington State
Coupe 6MT Premium RAS
Premier Member

Just have a muffler shop weld new tabs onto the catalytic converter, then drill a hole through the tab where it lines up with that bracket. Then you can just run a bolt and nut through the two to bolt them together on each side. Super easy fix.

Spray it down with cold galvanizing spray to keep it from rusting.

Reply
