Nov 12, 2013 | 04:26 PM

#16

WhosUrBuddiee

Registered User

iTrader: (4)

Joined: Oct 2005

Posts: 14,494

Likes: 996

From: Neverland

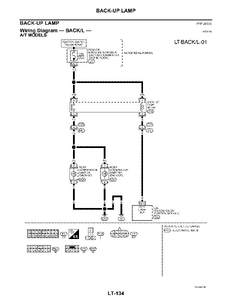

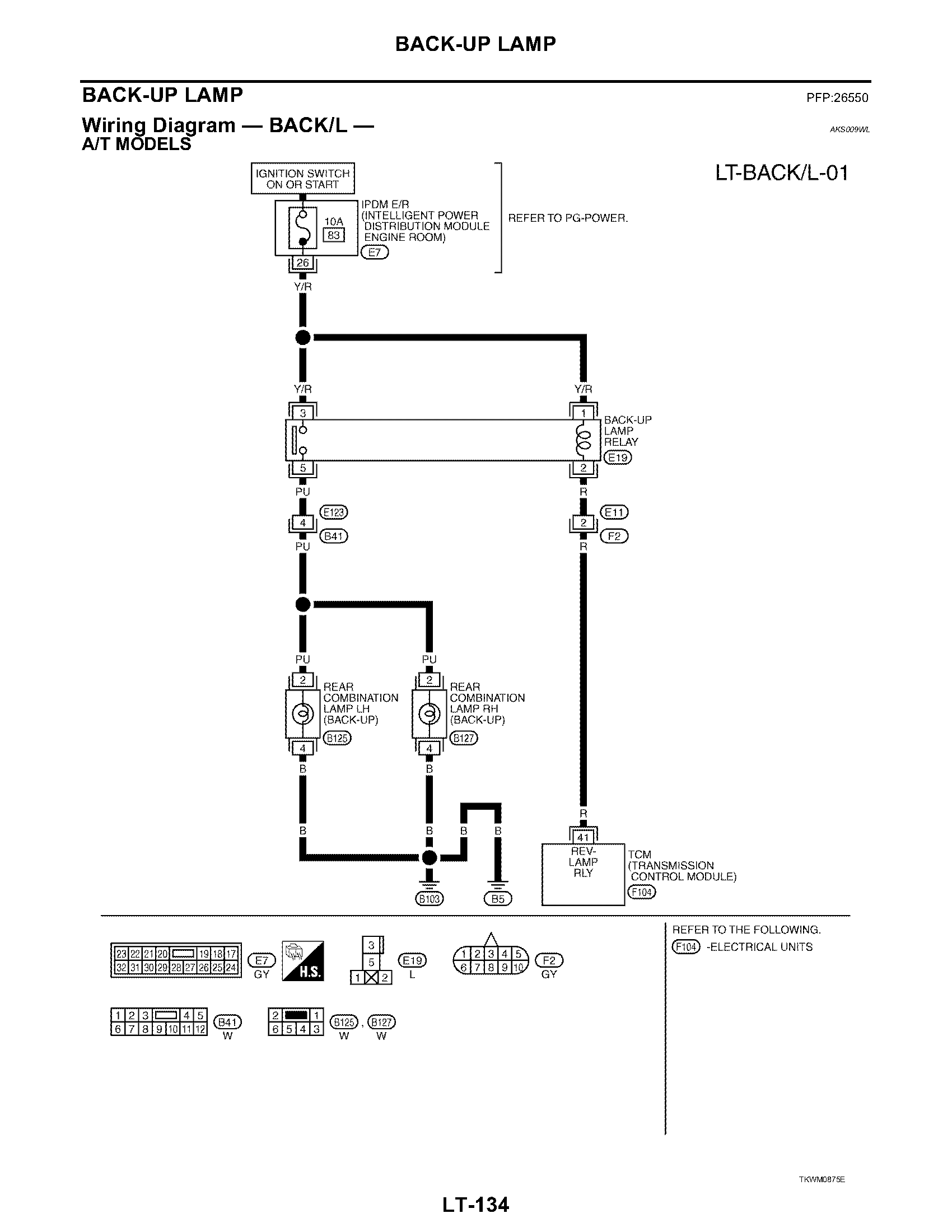

A/T

Both reverse lights are out!!!-y5zybnm.png

Nov 12, 2013 | 04:26 PM

#17

WhosUrBuddiee

Registered User

iTrader: (4)

Joined: Oct 2005

Posts: 14,494

Likes: 996

From: Neverland

M/T

Both reverse lights are out!!!-nemtsmj.png

Nov 12, 2013 | 04:29 PM

#18

WhosUrBuddiee

Registered User

iTrader: (4)

Joined: Oct 2005

Posts: 14,494

Likes: 996

From: Neverland

BTW, the IDPM is behind the battery.

Nov 12, 2013 | 05:13 PM

#19

Austin8868

Registered User

Joined: Sep 2013

Posts: 44

Likes: 2

Quote:

Originally Posted by WhosUrBuddiee

Anyone what?

It isnt missing. 6mts dont use a reverse relay, it gets feed directly from transmission. Only 5Ats have a reverse relay.

Refer to electrical service manual.
http://psedog.com/cars/fsm/g35/coupe/2004/lt.pdf

Just wondering if anyone knew why the reverse lights would be out. I have a 5at. I checked where the grommet is to see if the wires were cut but they were fine.

Nov 12, 2013 | 06:41 PM

#20

WhosUrBuddiee

Registered User

iTrader: (4)

Joined: Oct 2005

Posts: 14,494

Likes: 996

From: Neverland

Quote:

Originally Posted by Austin8868

Just wondering if anyone knew why the reverse lights would be out. I have a 5at. I checked where the grommet is to see if the wires were cut but they were fine.

I already posted the service manual and wiring diagram. It is either the relay, the fuse, or the bulbs. Check each one by one, if all are ok, then you have a ground or loose connection somewhere.
