OFFICIAL: Aggressive Wheel fitment FLUSH/STRETCH sedan

Thread Tools

Search this Thread

Rating: Thread Rating: 7 votes, 5.00 average.

Old Feb 14, 2011 | 01:49 PM
  #3001
SN00P's Avatar
CLUB MODERATOR
iTrader: (21)
Joined: Jan 2010
Posts: 8,028
Likes: 118
From: Florida G club
Originally Posted by CandlestickPark
Definitely don't cut your fenders, it can cause issues down the line you don't want to deal with (can't roll them flat, cut into your tires if you rub, etc.). Just get a good flat roll.
cory is right people here suck and the guy at the shop just left last week who did do it so now they have no one .. i have my rears cut as long as he gets the right tire and the perfect camber he will be ok ... cause my rears are cut im rolling less then a credit card gap when compressed from rim to fender LOL

Reply
Old Feb 14, 2011 | 01:55 PM
  #3002
SN00P's Avatar
CLUB MODERATOR
iTrader: (21)
Joined: Jan 2010
Posts: 8,028
Likes: 118
From: Florida G club
here is the rears cut and you can see the tire is so damn close to the fender but i clear PERFECT and then when the rim gets close to the fender i have the camber set to where it just barley clears the cut lip .. i did the compress test and everything and maxed the whole rear end down as low as i could make it and everything was so damn perfect

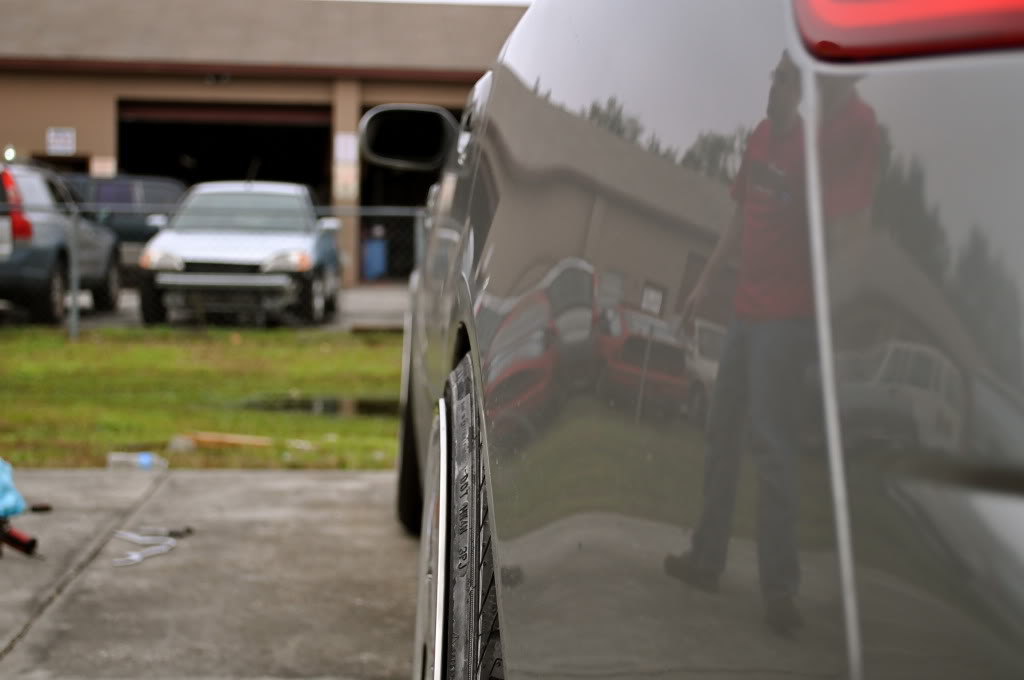

here is the stance before any compress out back but its a tad bit lower now after the coils settled in more

Name:  DSC_0543-2.jpg
Views: 109
Size:  87.2 KB

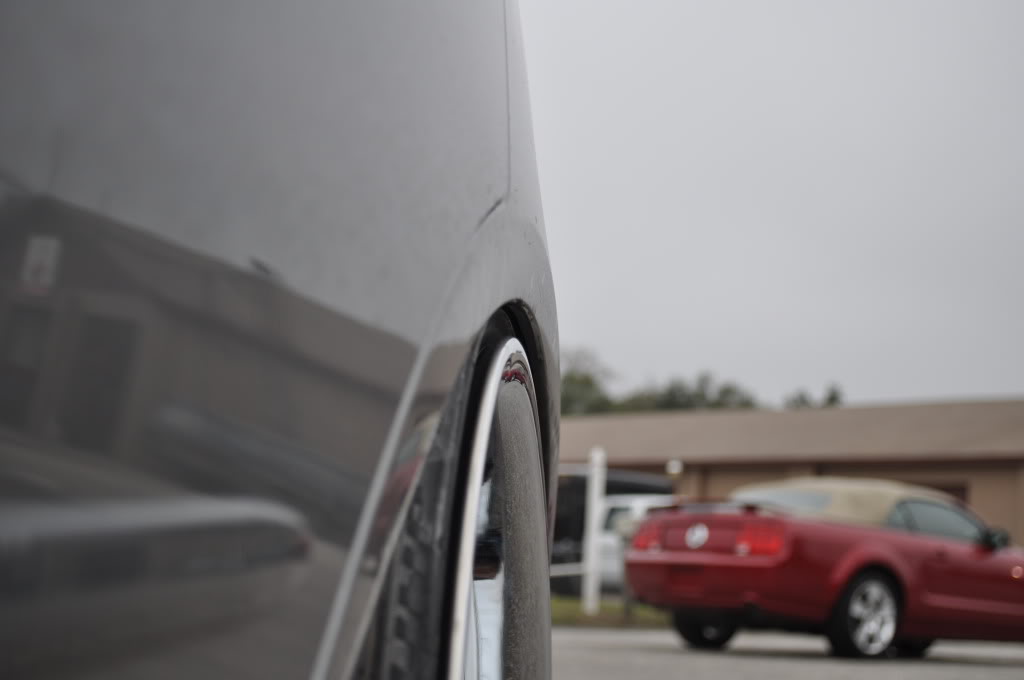

here is a picture to show you my tire to fender gap at a little compress i clear by about a credit card or 2

Name:  DSC_0546-3.jpg
Views: 109
Size:  33.2 KB

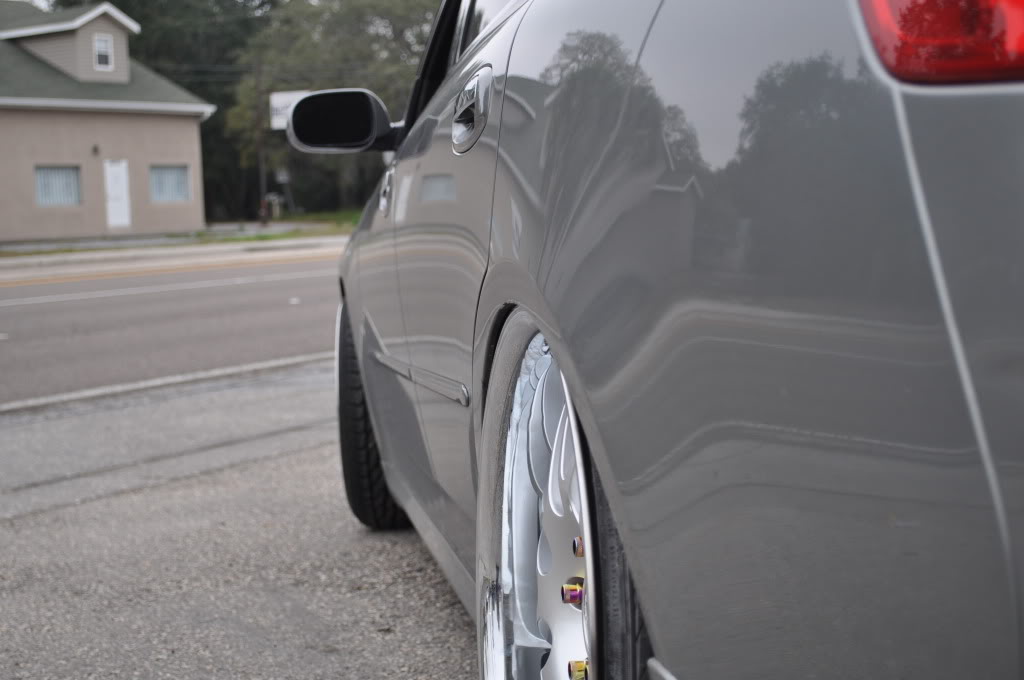

and then the rim tucks by a bit

Name:  DSC_0547-3.jpg
Views: 141
Size:  61.4 KB

because my rears were cut i took extra time to get everything " PERFECT " just so i wont hit the cut edge ... took almost 7 hours or playing with the height and camber to get it good without rubbing

Reply
Old Feb 14, 2011 | 02:16 PM
  #3003
cornell's Avatar
Registered User
Joined: Dec 2010
Posts: 74
Likes: 0
From: HOUSTON
Cutting may be ok as long as you plan to never do a pull. The small lip that is cut off is the pinch welds between the inner and outer fender. it might appear fine but once its cut welding and body work is needed for a pull.

Reply
Old Feb 14, 2011 | 02:26 PM
  #3004
SN00P's Avatar
CLUB MODERATOR
iTrader: (21)
Joined: Jan 2010
Posts: 8,028
Likes: 118
From: Florida G club
^^ i think you can pull the rear when its cut ... it should really be better IMO since its flat cut and the roller can stay right on the edge of the cut for a nice even pull ..

speaking of pulling im doing it friday with a roller

Reply
Old Feb 14, 2011 | 02:33 PM
  #3005
kennymo's Avatar
Registered User
iTrader: (22)
Joined: Sep 2009
Posts: 3,205
Likes: 23
From: bay area
i plan to do a pull on mine as well and they are cut. but snoop i think what he means is since its where the inner fender and quarter panel were attatched and now its cut. the 2 are going to seperate a little when we do a pull.

Reply
Old Feb 14, 2011 | 02:42 PM
  #3006
SN00P's Avatar
CLUB MODERATOR
iTrader: (21)
Joined: Jan 2010
Posts: 8,028
Likes: 118
From: Florida G club
Least of my worries :-P .. ill do it nice and slow and keep applying heat so the metal can stretch.just take your time and go inch by inch

Reply
Old Feb 14, 2011 | 02:48 PM
  #3007
forweareLegion's Avatar
Registered User
iTrader: (4)
Joined: Jul 2009
Posts: 751
Likes: 4
From: Alberta, Canada
@stormtroopa

It's impossible to keep paint on the inner fender lip when doing a roll and will need to be painted. The exterior however can be kept untouched by knowledgeable hands. It's just not worth the risk for most places, so they cant always guarentee a nice nevertheless perfect job.

Cornell is right about cutting out the fender lips, you seperate the inner and outer. When you do so you open up a whole new world of hurt when you want to pull fenders, and you also make it much easier for condensation to form in places it was never intended. When you pull them be prepared to spend a hundred times longer making it look pretty, not mention the initial suspension setup snoop already went through.


Last edited by forweareLegion; Feb 14, 2011 at 02:52 PM.
Reply
Old Feb 14, 2011 | 02:50 PM
  #3008
SN00P's Avatar
CLUB MODERATOR
iTrader: (21)
Joined: Jan 2010
Posts: 8,028
Likes: 118
From: Florida G club
+ cory you have a wavy roll anyways from trying to do it yourself so i really don't think you can get everything smooth again at all ....

Reply
Old Feb 14, 2011 | 02:59 PM
  #3009
black_gst's Avatar
Registered User
iTrader: (1)
Joined: Jan 2011
Posts: 180
Likes: 6
From: SoCal IE
im hoping some of you can give my some insight,

currently i have 20x8.5's all the way around lowered on Tein's (i bought the car like this)
the fronts dont really tuck but the rear tucks about half the tire (225/35/20).

fenders arent rolled, i am thinking about picking up a pair of the same wheels but in a 20x10 for the rear, im not big on the Hellaflush trend but i love the staggered look and would like to keep in "kindaflush" but i dont want alot of camber.

so my question is what offset would get me close and i do plan on rolling the fenders

thanks

Reply
Old Feb 14, 2011 | 03:02 PM
  #3010
kennymo's Avatar
Registered User
iTrader: (22)
Joined: Sep 2009
Posts: 3,205
Likes: 23
From: bay area
20x10 +40

can you post a pic of your current setup though

Reply
Old Feb 14, 2011 | 03:03 PM
  #3011
SN00P's Avatar
CLUB MODERATOR
iTrader: (21)
Joined: Jan 2010
Posts: 8,028
Likes: 118
From: Florida G club
well papa is a 20x10 +35 out back and he is FLUSH and around -2º ... so i way say +35 and up if you don't want to be FLUSH

Reply
Old Feb 14, 2011 | 03:16 PM
  #3012
black_gst's Avatar
Registered User
iTrader: (1)
Joined: Jan 2011
Posts: 180
Likes: 6
From: SoCal IE


i dont have a good pic showing fitment, in the rear, with the inner fender not rolled it just clears the tire but about 3/16" maybe even a bit less. and it looks like theres about 2.5*-3* of camber in the rear already,

ill take some more pics when i get it back from the dealer.

thanks for the help

Reply
Old Feb 14, 2011 | 03:23 PM
  #3013
CandlestickPark's Avatar
ill Sedan
Staff Alumni
iTrader: (87)
Joined: Jun 2007
Posts: 23,261
Likes: 2,688
From: Long Beach, SoCal
Premier Member

Originally Posted by forweareLegion
@stormtroopa

It's impossible to keep paint on the inner fender lip when doing a roll and will need to be painted. The exterior however can be kept untouched by knowledgeable hands. It's just not worth the risk for most places, so they cant always guarentee a nice nevertheless perfect job.

Cornell is right about cutting out the fender lips, you seperate the inner and outer. When you do so you open up a whole new world of hurt when you want to pull fenders, and you also make it much easier for condensation to form in places it was never intended. When you pull them be prepared to spend a hundred times longer making it look pretty, not mention the initial suspension setup snoop already went through.
I had a different experience. Initially my fenders were rolled very flat by a member here (ShanesG) and my paint didn't crack at all. When you get you fenders rolled there is always a chance that the paint may crack, but if you keep the fenders hot and go slow then its likely not to happen.

Reply
Old Feb 14, 2011 | 04:21 PM
  #3014
forweareLegion's Avatar
Registered User
iTrader: (4)
Joined: Jul 2009
Posts: 751
Likes: 4
From: Alberta, Canada
Originally Posted by CandlestickPark
I had a different experience. Initially my fenders were rolled very flat by a member here (ShanesG) and my paint didn't crack at all. When you get you fenders rolled there is always a chance that the paint may crack, but if you keep the fenders hot and go slow then its likely not to happen.
True enough. All of the cars I have personally done have needed the inner wells painted, and that's upwards of twenty cars. But I heavily favor a hammer. I havnt the patience nor did I have the time for due process with a fender roller. Granted I have tried the process to yield similar results to yours, the paint still cracked likely due to it's age (many of the cars were 15 or older).

Reply
Old Feb 14, 2011 | 06:50 PM
  #3015
Gdup35sedan's Avatar
ENVautoDetailing.com
iTrader: (47)
Joined: Sep 2005
Posts: 9,257
Likes: 136
From: San Diego/Redondo Beach
Premier Member

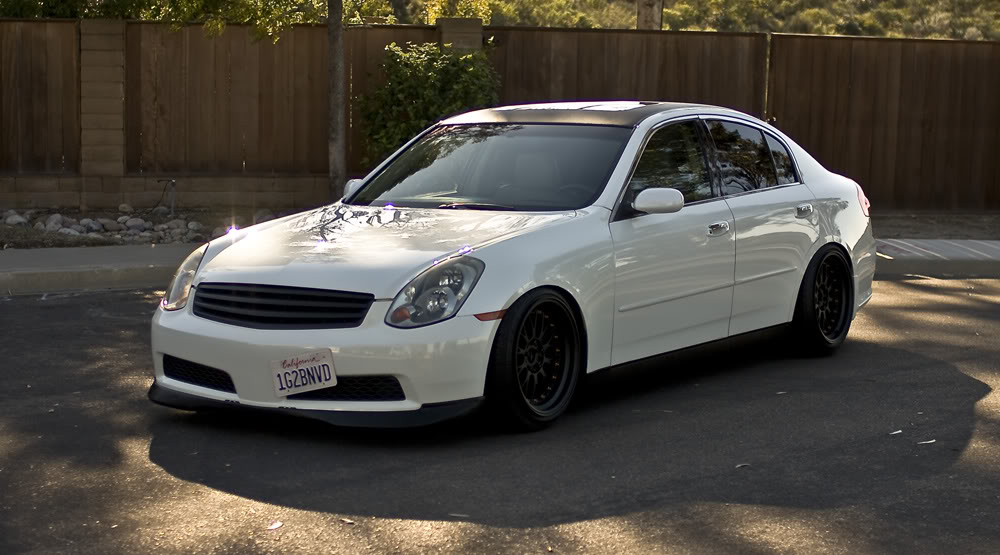

Update: Finally put on the 03-04 skirts I got from Vivek about a year and a half ago, and added an Ionic OEM front lip. Both are unpainted, the flat black ties in with the wheels and grille nicely

Name:  IMG_7927.jpg
Views: 157
Size:  100.3 KB

Reply
