The G-Spot General discussion about the G Series;
G35 & G37, Coupes & Sedans

Are G and Z steering racks interchangeable?

Thread Tools

Search this Thread

Rate Thread

Old Feb 12, 2012 | 04:08 PM
  #46
Blue Dream's Avatar
I drove ttrank's car solo
iTrader: (50)
Joined: Mar 2009
Posts: 18,299
Likes: 1,488
From: By the sea, Tx
G35 sedan w/ too much money in mods
Premier Member

Originally Posted by Blue Dream
OK cool. I think I might be developing an issue with my rack as well. I noticed a grease leak, look at the left side of the rack in the picture just to the right of the tie rod, you'll see the leak around the bolt. Stopped by our local dealer today to see if maybe a gasket or washer might have worn out I could replace and they don't sell the rack parts separately, just the whole assembly.

Show more
Originally Posted by myGspot
We had snow and rain here recently so it looks more like wet grease.... if that makes sense. Similar to what another guy posted on page 2 in his pic. My fluid level is normal and i dont see any tears in the boots or any leaks from any hoses.
If this is the post your referenced I cleaned the grease around the nut and it hasn't come back. So I assume it was just some build up and not an actual leak.

Reply
Old Feb 12, 2012 | 07:21 PM
  #47
AARONHL's Avatar
Thread Starter
|
Registered User
iTrader: (15)
Joined: Oct 2007
Posts: 4,334
Likes: 121
From: ɷCONNECTICUTɷ
The inner tie rod has a socket (behind the boot) that spins in order to adjust the toe by spinning in/out of the outer tie rod. The inner tie rod should stop spinning once the adjusting nut is tight. Inner tie rods don't usually break unless they are bent.

If your fluid level has remained the same and there are now spots on your driveway I would think the rack is not leaking. If it's severly leaking you will hear the steering fluid pump screeching in the morning or during full turns.

I would unbolt your outer tie rods from the wheel hub and see how their ball joint feels.

Reply
Old Feb 12, 2012 | 07:40 PM
  #48
AARONHL's Avatar
Thread Starter
|
Registered User
iTrader: (15)
Joined: Oct 2007
Posts: 4,334
Likes: 121
From: ɷCONNECTICUTɷ
Also watch the fluid coming from the right side boot, looks like it got on the pipes near it too. Mine was leaking so badly, fluid was coming from the boots.

Reply
Old Feb 19, 2012 | 03:21 PM
  #49
myGspot's Avatar
Registered User
iTrader: (1)
Joined: Aug 2003
Posts: 980
Likes: 6
From: New York City / Long Island
finally was able to get under the car to take the picture.
as you can see the oil is pretty much all over the bolt area. I looked at the fluid level and that is still the same. there are no leaks on the ground and the pump does not make any screaching sounds. i did look at the boots and they seem to be in good condition and do not have any tears or leaks coming form them

I was able to take a small video of how i am able to move the tie rod. I know i tried moving the tie rod on another G like this and was not able to at all. so i am not sure what exactly the issue could be. either outter tie rod or the steering rack itself or both.

http://youtu.be/YeadhYTM7Wg

here is the short video. sorry about the music had the radio playing.

Reply
Old Feb 19, 2012 | 06:40 PM
  #50
AARONHL's Avatar
Thread Starter
|
Registered User
iTrader: (15)
Joined: Oct 2007
Posts: 4,334
Likes: 121
From: ɷCONNECTICUTɷ
They move a little bit even with low mileage on them. Tough to say if you need a replacement without feeling the ball joint myself. If you disconnect the outer tie rod, jiggle the ball joint, and hear the joint hitting metal - that would be a good way to see if you need a replacement. Also if the ball joint doesn't spring back.

Your steering rack seems OK!

Reply
Old Feb 20, 2012 | 03:50 PM
  #51
myGspot's Avatar
Registered User
iTrader: (1)
Joined: Aug 2003
Posts: 980
Likes: 6
From: New York City / Long Island
so the leak is normal ? is there anyway to actually stop the leak or there is no seal replacement for that bolt?

Reply
Old Feb 20, 2012 | 09:36 PM
  #52
AARONHL's Avatar
Thread Starter
|
Registered User
iTrader: (15)
Joined: Oct 2007
Posts: 4,334
Likes: 121
From: ɷCONNECTICUTɷ
Well, I don't see the picture you said you posted. If the fluid is a continuous leak, meaning it comes back after you wipe it off, then I might consider replacing it. I mean mine was leaking pretty bad, I had spots ALL over the driveway.

If your bolt looks like what Blue Dream posted, then don't worry about it..

Reply
Old Feb 21, 2012 | 11:25 AM
  #53
myGspot's Avatar
Registered User
iTrader: (1)
Joined: Aug 2003
Posts: 980
Likes: 6
From: New York City / Long Island

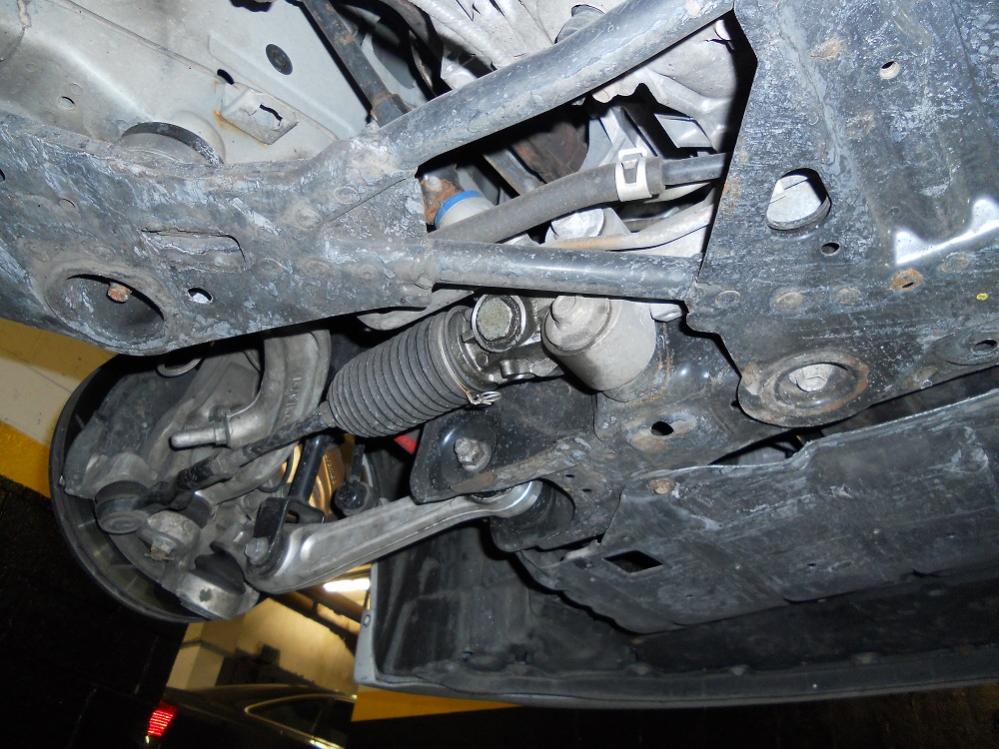

sorry forgot to add the pic of the leak. let me know

Attached Thumbnails Are G and Z steering racks interchangeable?-leak276.jpg
Reply
Old Feb 21, 2012 | 11:40 AM
  #54
AARONHL's Avatar
Thread Starter
|
Registered User
iTrader: (15)
Joined: Oct 2007
Posts: 4,334
Likes: 121
From: ɷCONNECTICUTɷ
It doesn't look like it's constantly leaking, and since your fluid level isn't changing...you should be ok.

Reply
Old Feb 21, 2012 | 04:51 PM
  #55
myGspot's Avatar
Registered User
iTrader: (1)
Joined: Aug 2003
Posts: 980
Likes: 6
From: New York City / Long Island
ok you better be right or you are helping me swap it lol

Reply
Old Feb 21, 2012 | 11:07 PM
  #56
AARONHL's Avatar
Thread Starter
|
Registered User
iTrader: (15)
Joined: Oct 2007
Posts: 4,334
Likes: 121
From: ɷCONNECTICUTɷ
Hahaha ok sounds like a deal

Reply
