What did you do to the G today?
Registered User
Joined: Jul 2015
Posts: 311
Likes: 23
Wiring is actually really easy. Just cut off the oem ballast plug, wire that to your new ballast, cut off the high beam wire on the H4 plug (for non oem projector models) and wire that into your projector high beam shudder. easy peasy. Took me 10 minutes to solder and heatsink both harnesses. as for a diagram, Red wire on H4 plug is high beam, black-ground, yellow-low. Light gray on HID wire is positive, dark gray is negative.
Registered User
Joined: Dec 2014
Posts: 1,000
Likes: 116
Wiring is actually really easy. Just cut off the oem ballast plug, wire that to your new ballast, cut off the high beam wire on the H4 plug (for non oem projector models) and wire that into your projector high beam shudder. easy peasy. Took me 10 minutes to solder and heatsink both harnesses. as for a diagram, Red wire on H4 plug is high beam, black-ground, yellow-low. Light gray on HID wire is positive, dark gray is negative.
Wow thanks so much. That puts my mind at ease
Registered User
Joined: Jul 2015
Posts: 311
Likes: 23
Lemme make it easy: for headlights, wire H1 plug red wire to light gray hid wire/H1 black wire to hid dark gray wire.
For fogs wire H1 red wire to yellow wire/H1 black wire to black wire.
The Projector flap ground wires will also need to be tied in with the other ground wires (Dark gray for headlights and black for fogs)
Then take the Red wire from the OEM fog light wires and split that to both the projector flap red wires.
If you want to run 4 headlights and get pulled over a lot, then you will need to run a couple relays and use the oem hid wires as a switch for the relays.
If anything, grab a test light and test the wires before you start connecting them all. These are the wire colors used in my 04, but it may have changed in the years.
Registered User
Joined: Dec 2014
Posts: 1,000
Likes: 116
are you wanting 4 headlights, or projector headlights and projector fogs? If you want to run the fogs like normal just solder the new ballast wires into the fog power wires. If you havn't already, you will need 4 H1 male plugs to plug into your ballasts (should have come with some) Solder the H1 plugs into the power wires for each light, then share the brights wire (red wire on fog light plug) for the brights flap in the projectors.
Lemme make it easy: for headlights, wire H1 plug red wire to light gray hid wire/H1 black wire to hid dark gray wire.
For fogs wire H1 red wire to yellow wire/H1 black wire to black wire.
The Projector flap ground wires will also need to be tied in with the other ground wires (Dark gray for headlights and black for fogs)
Then take the Red wire from the OEM fog light wires and split that to both the projector flap red wires.
If you want to run 4 headlights and get pulled over a lot, then you will need to run a couple relays and use the oem hid wires as a switch for the relays.
If anything, grab a test light and test the wires before you start connecting them all. These are the wire colors used in my 04, but it may have changed in the years.
Lemme make it easy: for headlights, wire H1 plug red wire to light gray hid wire/H1 black wire to hid dark gray wire.
For fogs wire H1 red wire to yellow wire/H1 black wire to black wire.
The Projector flap ground wires will also need to be tied in with the other ground wires (Dark gray for headlights and black for fogs)
Then take the Red wire from the OEM fog light wires and split that to both the projector flap red wires.
If you want to run 4 headlights and get pulled over a lot, then you will need to run a couple relays and use the oem hid wires as a switch for the relays.
If anything, grab a test light and test the wires before you start connecting them all. These are the wire colors used in my 04, but it may have changed in the years.
Thanks man this really helps alot!
Last edited by eazdaskeez; Feb 4, 2016 at 09:05 PM.
Registered User
Joined: Dec 2014
Posts: 1,000
Likes: 116

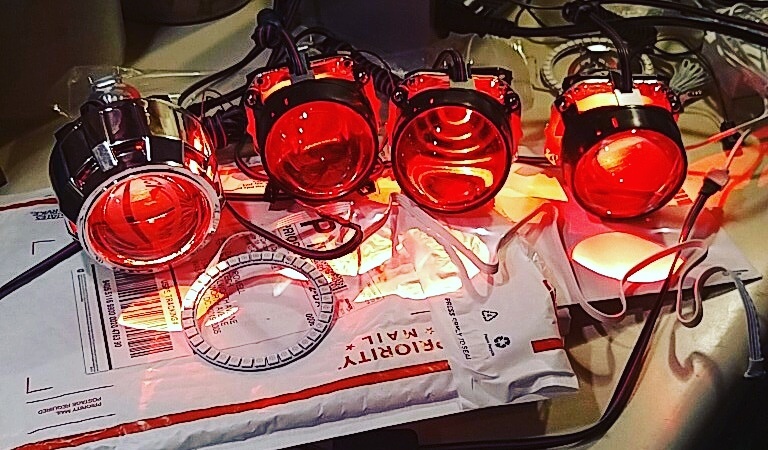

I think I'll just run the usual setup and lows on and switch to highs when needed. They have rgb demons eyes so I'll run those to a separate switch
Bought a new welder. Fixed the leak in this Ebay "no longer a slip fit" exhaust. Installed MD 5/16" spacer, uploaded new Osiris program that Seymore4 tweaked for the MD spacer. Immediately left town and drove for 3 hrs. Not a hiccup.
Very nice.
Very nice.
