Replaced almost entire front suspension, still clunking noise. G35X
Hey guys, I'm having this extremely annoying issue with my 04 G35X. Every time I go over a mild bump I hear a clunking noise coming from the driver side. I've replace almost every single part of the front end suspension on both sides but I cannot for the life of me get this noise to go away.
I'll post some images of some of the things I've replaced (didn't take pictures of everything). I replaced the upper control arms, lower control arms, every single bushing (including the sway bar bushings), lower control arm ball joint, stabilizer link connecting rods, stabilizer bar links, even replaced the axle on the driver side (boot was torn). I'm totally lost at this point. The only two parts I haven't replaced are the tie rods & compression rods. I was going to order both compression rods but would that even cause a clunking noise? I checked the struts/strut mounts on both sides and they both look good. I figured I would ask before I buy the compression rods. This is driving me crazy. I almost want to just finish replacing every single part at this point smh... Any other potential culprits that I am missing?

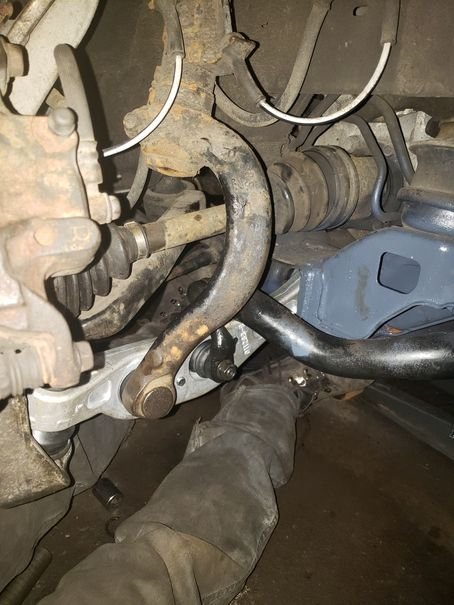

New Lower control arm with bushings and ball joints pressed in place & stabilizer bar link.
New lower control arm ball joint.

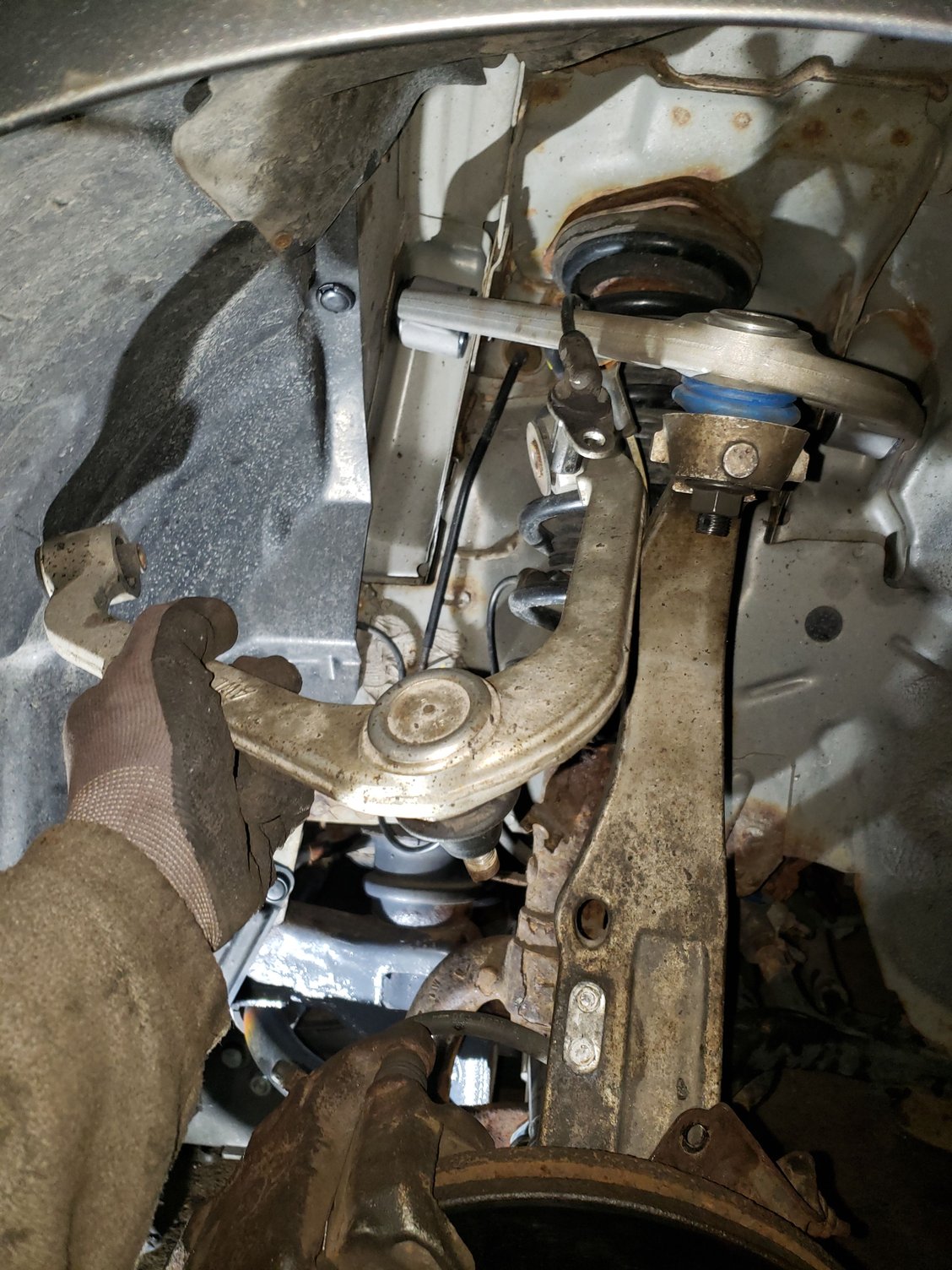

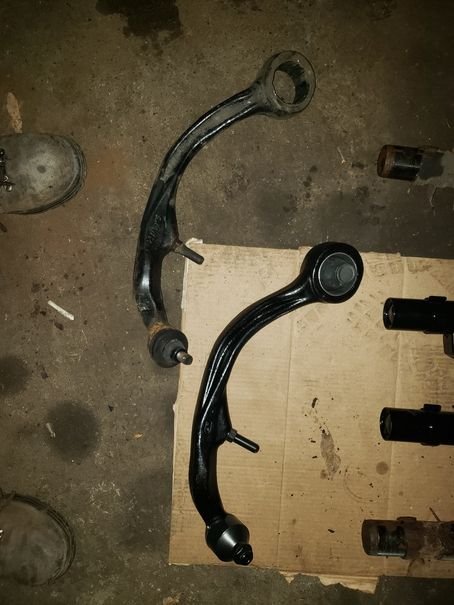

New upper control arm next to old one.

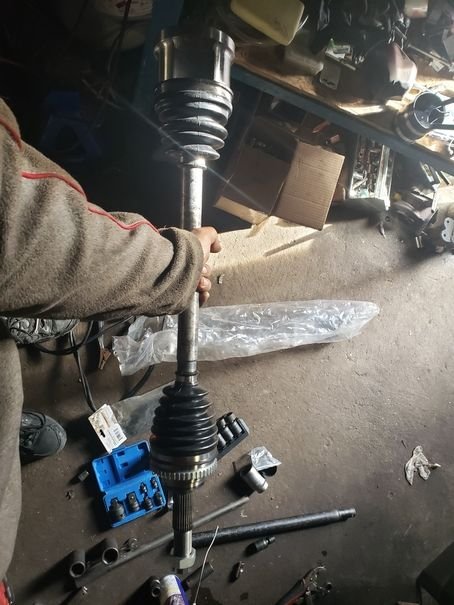

New driver side axle (biggest paint in the **** to replace).
New driver side axle installed.
I'll post some images of some of the things I've replaced (didn't take pictures of everything). I replaced the upper control arms, lower control arms, every single bushing (including the sway bar bushings), lower control arm ball joint, stabilizer link connecting rods, stabilizer bar links, even replaced the axle on the driver side (boot was torn). I'm totally lost at this point. The only two parts I haven't replaced are the tie rods & compression rods. I was going to order both compression rods but would that even cause a clunking noise? I checked the struts/strut mounts on both sides and they both look good. I figured I would ask before I buy the compression rods. This is driving me crazy. I almost want to just finish replacing every single part at this point smh... Any other potential culprits that I am missing?
New Lower control arm with bushings and ball joints pressed in place & stabilizer bar link.
New lower control arm ball joint.
New upper control arm next to old one.
New driver side axle (biggest paint in the **** to replace).
New driver side axle installed.
#2
Join Date: May 2017
Location: Washington State
Posts: 14,799
Received 2,463 Likes
on
2,155 Posts
Coupe 6MT Premium RAS
The biggest culprit for clunking sounds is struts, especially if you have more than 100k miles on them. That's pretty much the max life expectancy for any strut.
You should also lift/support the front and pull on the wheels to see what condition the wheel bearings are in, typically on this chassis they start to make a humming sound, not always though.
You should also lift/support the front and pull on the wheels to see what condition the wheel bearings are in, typically on this chassis they start to make a humming sound, not always though.
#3
I went ahead and bought both strut assemblies and both compression arms. I'll post back when I swap them. Hopefully it fixes the problem. The only thing left would be the tie rods at that point. The car rides fine which is why I was reluctant to swap out the struts but I'm at the point where I kinda have no choice. I'm gonna lose my **** if that doesn't fix it haha.
#4
#5
The following 2 users liked this post by fitgineer_93:
ScrubbinBubbles (03-20-2021),
tiguy99 (03-24-2021)
#6
It turns out it was the compression rod balljoint that was shot. I swapped both struts and rode her around the block and she was still clunking away. Swapped both rods (by far the hardest part to swap out of the entire front suspension) after that and the noise completely went away. She rides so good now, the steering is much more stiff and responsive than before. Was kinda annoyed at first but worth it in the end.
New & old strut assemblies
New & old compression rods.

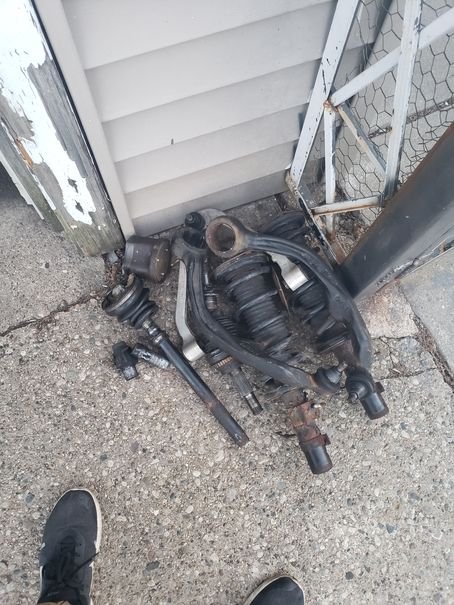

Old suspension junk.
New & old strut assemblies
New & old compression rods.
Old suspension junk.
#7
Join Date: May 2017
Location: Washington State
Posts: 14,799
Received 2,463 Likes
on
2,155 Posts
Coupe 6MT Premium RAS
The silver lining is now you have a fully refreshed front end.
I do recommend replacing EVERY SINGLE COMPONENT when doing front end work on this chassis if there is more than 75k miles on the parts. These front ends were built to PERFORM, definitely not built to last.
Might as well tear the whole thing apart one time and replace it all in a single shot.
I do recommend replacing EVERY SINGLE COMPONENT when doing front end work on this chassis if there is more than 75k miles on the parts. These front ends were built to PERFORM, definitely not built to last.
Might as well tear the whole thing apart one time and replace it all in a single shot.
The following users liked this post:
tiguy99 (03-24-2021)
Trending Topics
#8
Which struts did you install? They look like FCS off Rockauto. I installed these on my X as they were cheap and (at the time) the only complete assemblies available for the X. I see Rockauto now sells Monroe assemblies which I would have preferred.
My ride now sits about a 1/2" - 3/4" higher than it did before. The length form the very top of the assembly to the bottom of the collar that sits in the shock absorber arm is longer. Great struts for the price, zero performance issues so far. Just sad that my car now has MORE wheel gap.
My ride now sits about a 1/2" - 3/4" higher than it did before. The length form the very top of the assembly to the bottom of the collar that sits in the shock absorber arm is longer. Great struts for the price, zero performance issues so far. Just sad that my car now has MORE wheel gap.
The following users liked this post:
ScrubbinBubbles (03-22-2021)
#9
Which struts did you install? They look like FCS off Rockauto. I installed these on my X as they were cheap and (at the time) the only complete assemblies available for the X. I see Rockauto now sells Monroe assemblies which I would have preferred.
My ride now sits about a 1/2" - 3/4" higher than it did before. The length form the very top of the assembly to the bottom of the collar that sits in the shock absorber arm is longer. Great struts for the price, zero performance issues so far. Just sad that my car now has MORE wheel gap.
My ride now sits about a 1/2" - 3/4" higher than it did before. The length form the very top of the assembly to the bottom of the collar that sits in the shock absorber arm is longer. Great struts for the price, zero performance issues so far. Just sad that my car now has MORE wheel gap.
#10
#11
Then, if you really want to appreciate how tight the suspension is, toss on some Hotchkis sway bars and you’ll officially have a 100% replaced front end suspension and you’ll be whipping around corners like nothing!
The following users liked this post:
ScrubbinBubbles (03-23-2021)
#12
Glad to hear it was the ball joints on the rod.
I was pretty sure it was my fix as i took it to a shop and they were betting on it being the strut mount. I was lowered on Tein springs so most shops were so focused on that. I had lifetime warranty on KYB struts thru rockauto so i just paid the $30 for the mount and swapped whole thing. It did not fix my problem. At the end of the day, compression rods were the only thing left but they had no play in them whatsoever.
Someone needed a car and offered decent money for mines, so it was a done deal.
I was pretty sure it was my fix as i took it to a shop and they were betting on it being the strut mount. I was lowered on Tein springs so most shops were so focused on that. I had lifetime warranty on KYB struts thru rockauto so i just paid the $30 for the mount and swapped whole thing. It did not fix my problem. At the end of the day, compression rods were the only thing left but they had no play in them whatsoever.
Someone needed a car and offered decent money for mines, so it was a done deal.
#13
Glad to hear it was the ball joints on the rod.
I was pretty sure it was my fix as i took it to a shop and they were betting on it being the strut mount. I was lowered on Tein springs so most shops were so focused on that. I had lifetime warranty on KYB struts thru rockauto so i just paid the $30 for the mount and swapped whole thing. It did not fix my problem. At the end of the day, compression rods were the only thing left but they had no play in them whatsoever.
Someone needed a car and offered decent money for mines, so it was a done deal.
I was pretty sure it was my fix as i took it to a shop and they were betting on it being the strut mount. I was lowered on Tein springs so most shops were so focused on that. I had lifetime warranty on KYB struts thru rockauto so i just paid the $30 for the mount and swapped whole thing. It did not fix my problem. At the end of the day, compression rods were the only thing left but they had no play in them whatsoever.
Someone needed a car and offered decent money for mines, so it was a done deal.
#14
Join Date: May 2017
Location: Washington State
Posts: 14,799
Received 2,463 Likes
on
2,155 Posts
Coupe 6MT Premium RAS
These things help a ton with the busted knuckles.
I won't even touch a car anymore without wearing a pair, they're just thin enough that they don't affect dexterity at all, they actually fit your hand really well (some brands have artarded pinky finger lengths), they're cheap and are only $2/pair, but they provide just enough protection against abrasions and such.
I won't even touch a car anymore without wearing a pair, they're just thin enough that they don't affect dexterity at all, they actually fit your hand really well (some brands have artarded pinky finger lengths), they're cheap and are only $2/pair, but they provide just enough protection against abrasions and such.
The following users liked this post:
ScrubbinBubbles (03-27-2021)
