Anyone know what this thing is at back of engine?

Thread Tools

Search this Thread

Rate Thread

Old Mar 19, 2022 | 05:31 PM
  #1
Cabrito's Avatar
Thread Starter
|
Registered User
Joined: Nov 2006
Posts: 65
Likes: 4
From: Los Angeles
07 G35S 6MT
Anyone know what this thing is at back of engine?

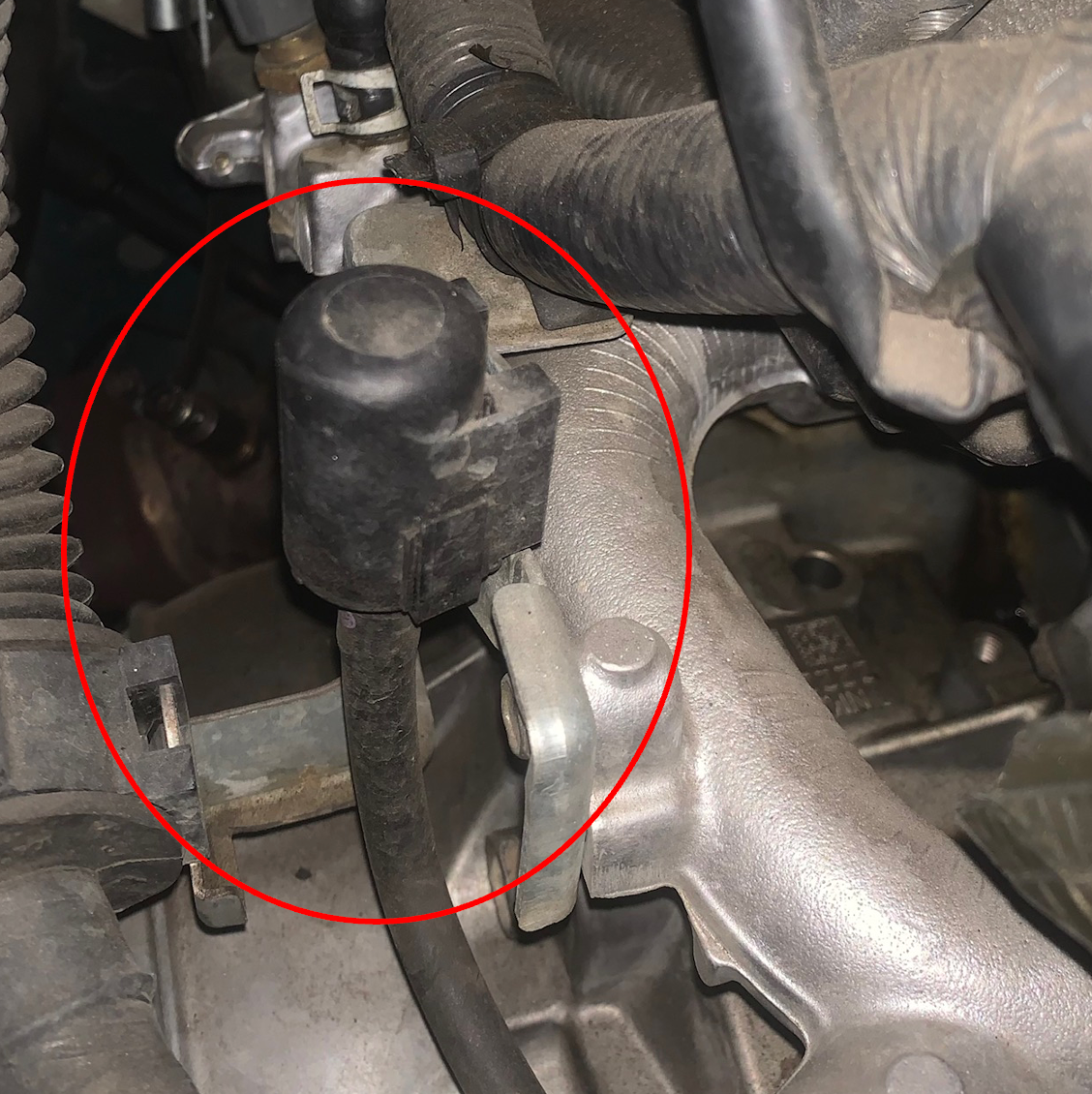

Sorry for the poor focus. It's cylindrical and seems to have a single vacuum line coming out of the bottom. I may have disconnected it at some point and forgot where it plugs in. Couldn't seem to find the object in the shop manual. Left side of image is the firewall. Thanks.



Reply
Old Mar 19, 2022 | 08:50 PM
  #2
cleric670's Avatar
BANNED!!!
Joined: May 2017
Posts: 14,837
Likes: 2,497
From: Washington State
Coupe 6MT Premium RAS
Premier Member

Need a pic with better focus. Normally on a smartphone you can tap on the screen exactly where you want the camera to focus on.

Reply
Old Mar 20, 2022 | 12:41 AM
  #3
Cabrito's Avatar
Thread Starter
|
Registered User
Joined: Nov 2006
Posts: 65
Likes: 4
From: Los Angeles
07 G35S 6MT
Got it this time! Want to figure out where I'm supposed to connect its tubing. Thanks.



Reply
Old Mar 20, 2022 | 03:07 AM
  #4
Cabrito's Avatar
Thread Starter
|
Registered User
Joined: Nov 2006
Posts: 65
Likes: 4
From: Los Angeles
07 G35S 6MT
OK - figured it out from looking at used engines on eBay. It's an air breather hose for the transmission. Must have pulled it by accident.

Reply
Old Mar 20, 2022 | 09:24 AM
  #5
cleric670's Avatar
BANNED!!!
Joined: May 2017
Posts: 14,837
Likes: 2,497
From: Washington State
Coupe 6MT Premium RAS
Premier Member

That's what I suspected since I didn't see one on my vehicle (6MT). Not sure where it's supposed to attach.

Reply
Old Mar 20, 2022 | 11:35 AM
  #6
Mr.GEE's Avatar
Registered User
20 Year Member
Joined: Feb 2005
Posts: 470
Likes: 42
From: Severn, Maryland
See page from the service manual. The item you refer to is #1.

Attached Files
File Type: pdf
TR Breather.pdf (78.7 KB, 62 views)
Reply
Old Mar 20, 2022 | 12:49 PM
  #7
Cabrito's Avatar
Thread Starter
|
Registered User
Joined: Nov 2006
Posts: 65
Likes: 4
From: Los Angeles
07 G35S 6MT
Mine's also a 6MT. I didn't mention it in the original post because I couldn't imagine it was relevant.
Wrong again.

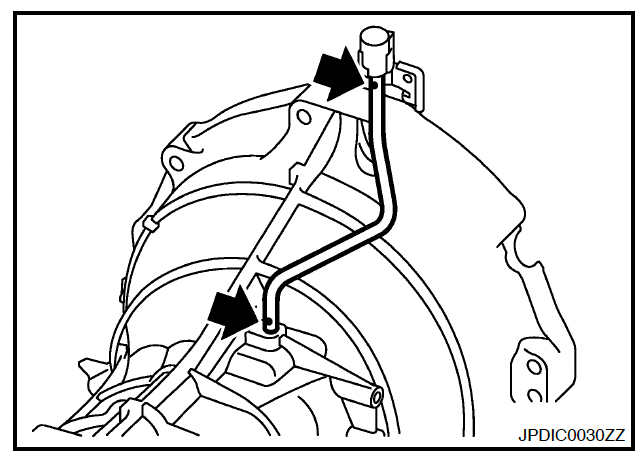

Here's the diagram (shop manual pg TM-25):



If you're trying to locate, it attaches to the rear water pipe, on the passenger side.


Last edited by Cabrito; Mar 20, 2022 at 12:52 PM. Reason: Added where to find.
