$5 dollar actuator fix!!!! (Krazematik verison)

first i would like to thank JFpound for the write up now im going to post some of my pictures for those who have concern

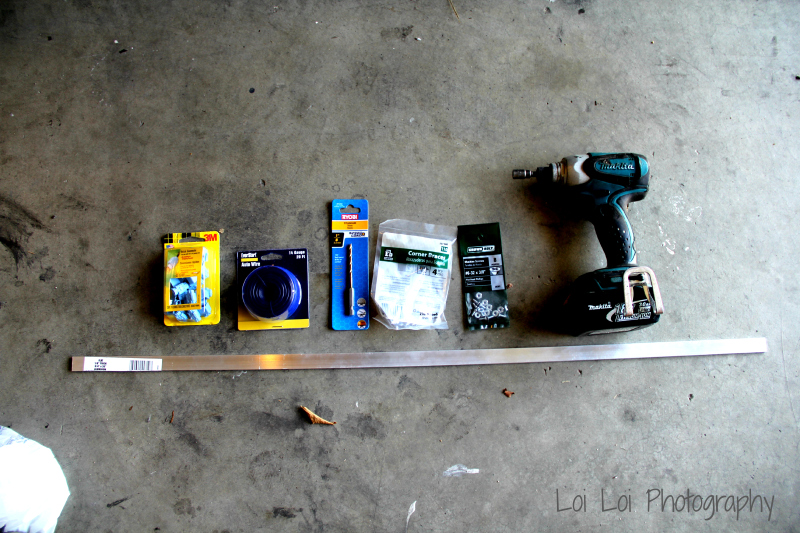

tools need for the job metal bar at the bottom was not used, its basically its screws small "L" brackets and a drill with drill bit
Name:  IMG_0078-1.jpg
Views: 11
Size:  364.1 KB
Name:  IMG_0083-1.jpg
Views: 10
Size:  281.6 KB

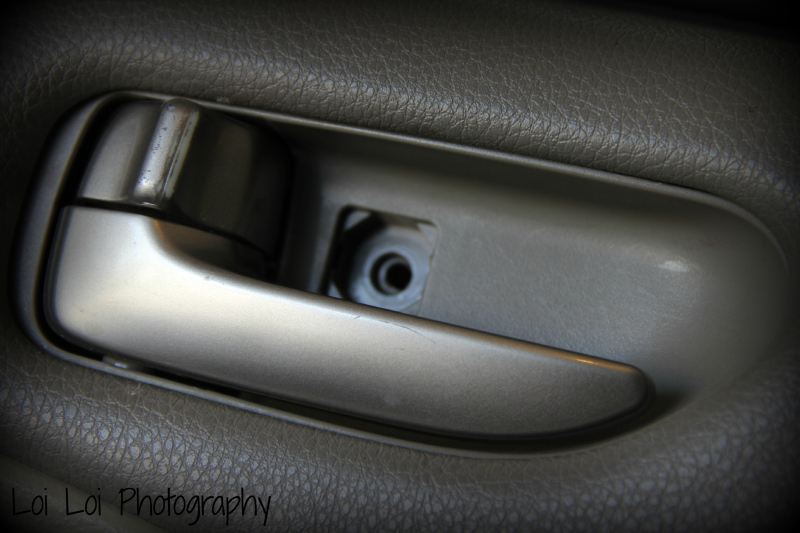

first remove a small cover at the door handle with a screw behind it
Name:  IMG_0079-1.jpg
Views: 10
Size:  249.5 KB

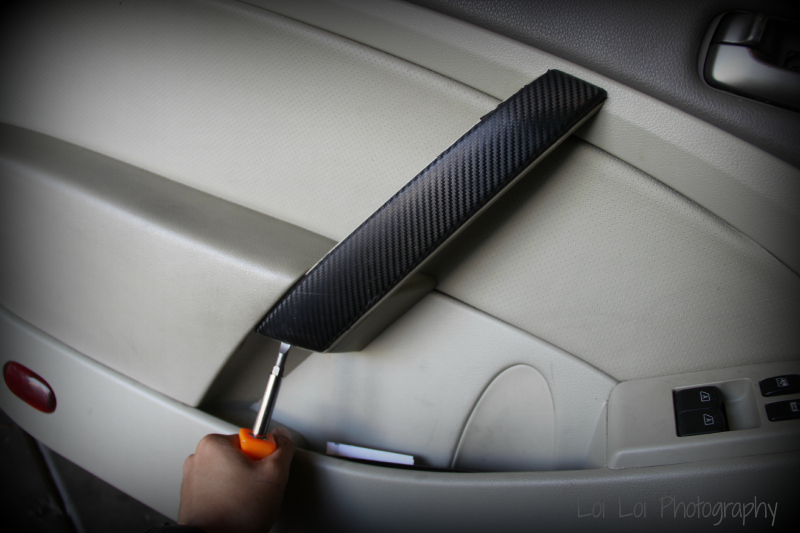

now remove a the cover at the door handle
Name:  IMG_0080-1.jpg
Views: 9
Size:  195.2 KB

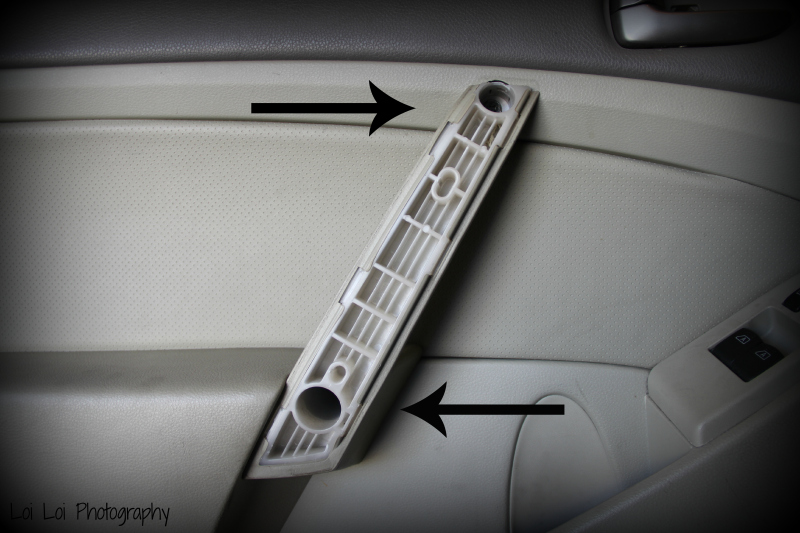

now once that is removed there should be two screw behind it
Name:  IMG_0081-1.jpg
Views: 11
Size:  221.6 KB

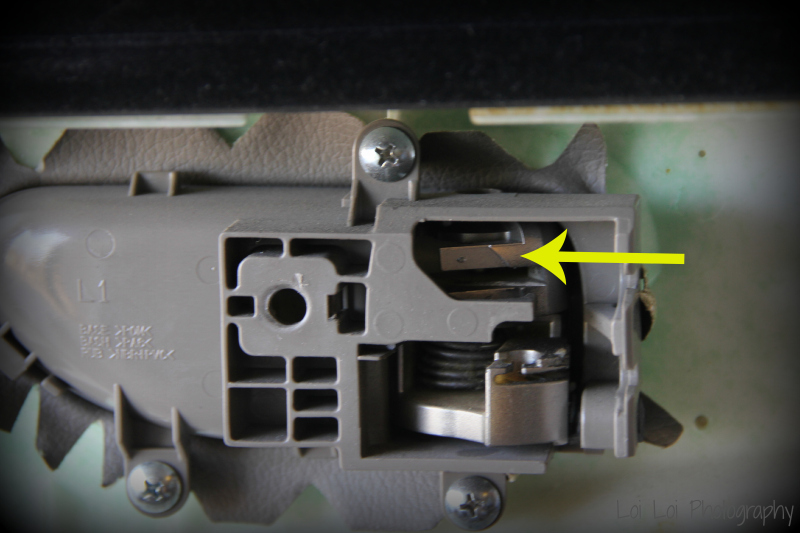

use a dremel to drill out the top part inside the door handle the yellow arrow shows what need to be shaved down
Name:  IMG_0086-1.jpg
Views: 9
Size:  188.9 KB

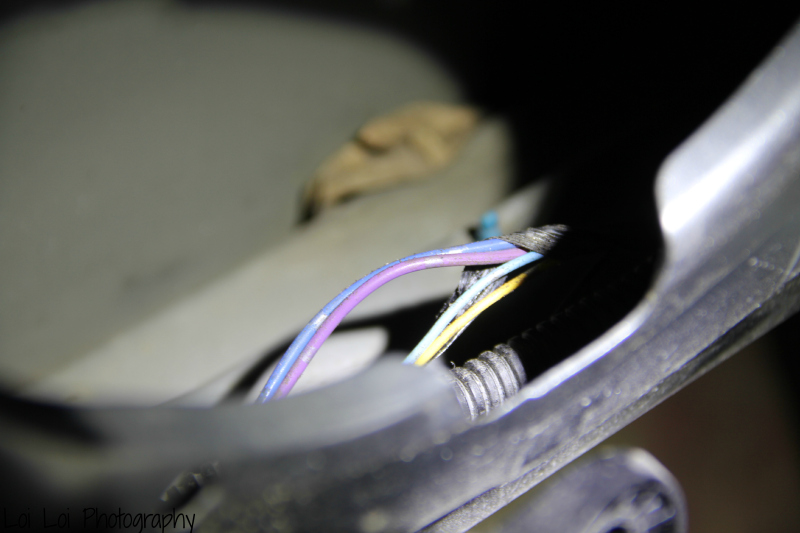

how remove the door speakers and behind it should be a few wires but the main ones are "blue" not baby blue and the other one is purple those are the two wire that will need to be tapped in
Name:  IMG_0090-1.jpg
Views: 9
Size:  166.5 KB

how make sure you line the up the rod then drill threw the white plastic and grey door handle, make sure you drill and make a big hole for any adjustment or room to play with now the rod that came with the kit will need to be cut down to fit

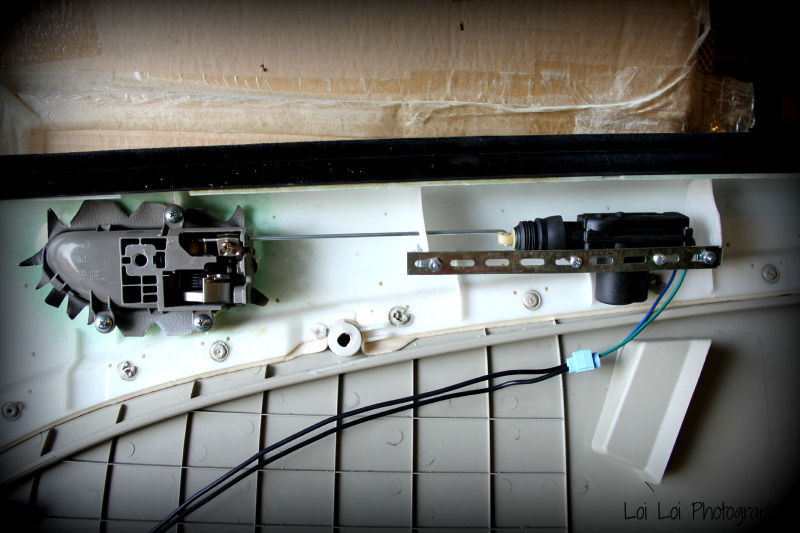

how this is how it suppose to look like
Name:  IMG_0093-1.jpg
Views: 11
Size:  271.3 KB
