My greddy twin turbo awd g35x build
As many of you on Facebook know me as Mike Stig, I have been through a lot with my build from the beginning. I'm sure everyone can relate to how hard it is to stop the mod bug from taking over, throwing money into the G, keeping your lady happy, keep maintaining your OEM parts, and shutting them V8's down in your rear view mirror.
Anyways, I don't go on Facebook as much anymore and would like to share my build here...where my first mod bug got started (H&R springs and Custom built Koni Shocks).
Big thanks to those who have helped me along the way!: #ocinfiniti #outcastgarage #GrantPlummer #Technosquare #BaidPolish #Corner3Garage #Mishimoto #greddy
So here is my progression and endless parts thread:

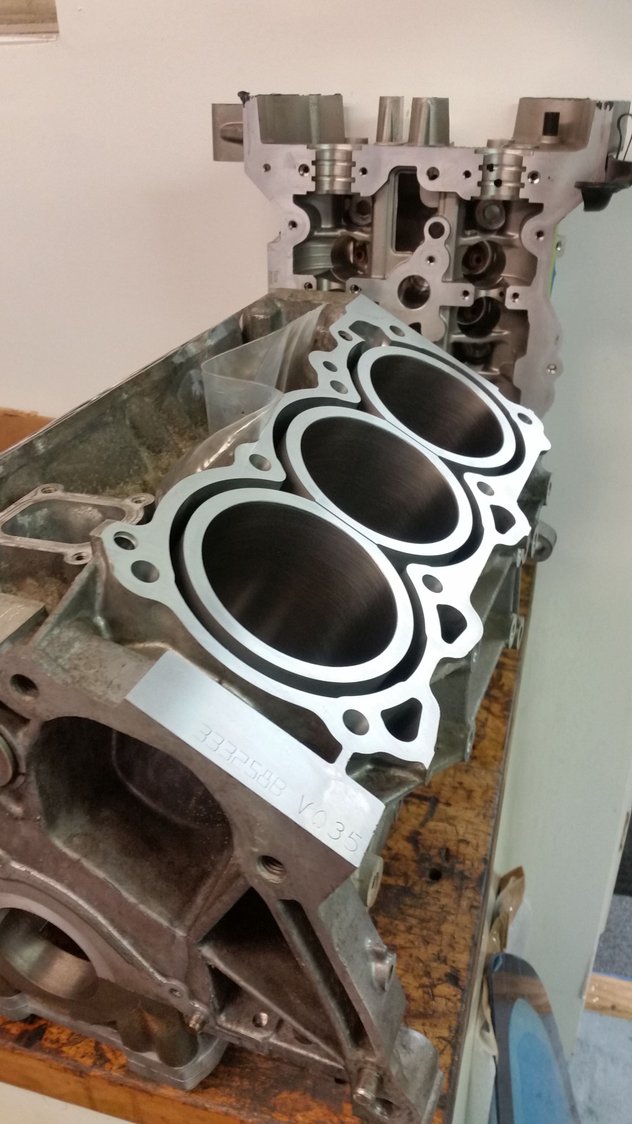

2005 Infiniti G35X AWD VQ35DE - Built by Technosquare
Cosworth pistons– 8.8:1 // 95.75mm w/custom CP piston rings

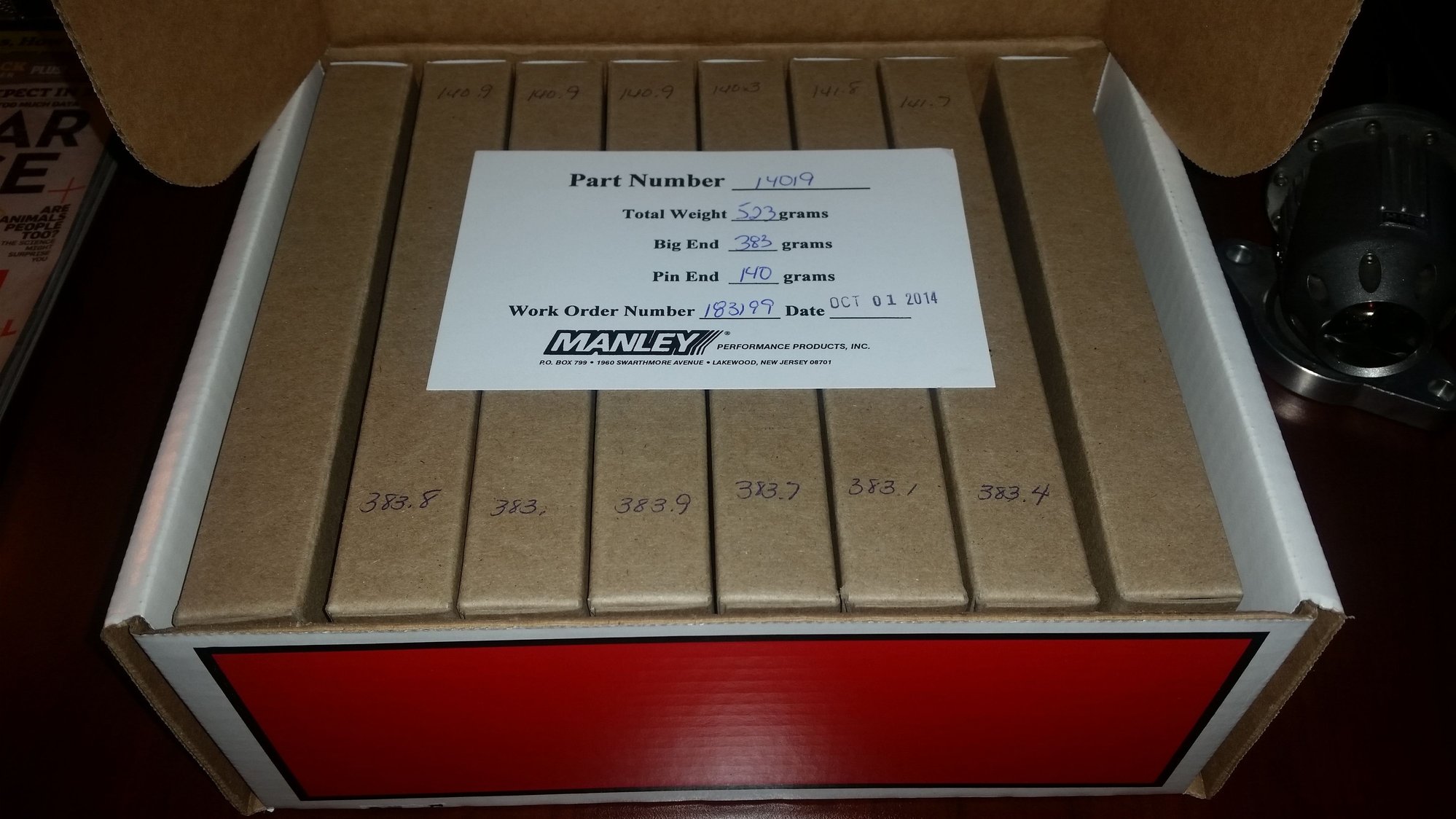

Manley H-Beam Rods ARP bolts
ACL Main and Rod Bearings
VQ35HR OEM Head Gaskets
Brian Crower valves, springs, titanium retainers
Ferrea Valve Stem Seal Kit
ARP Main (ARP 202-5801) and Head Bolts/Studs
NGK 1 step colder Spark Plugs

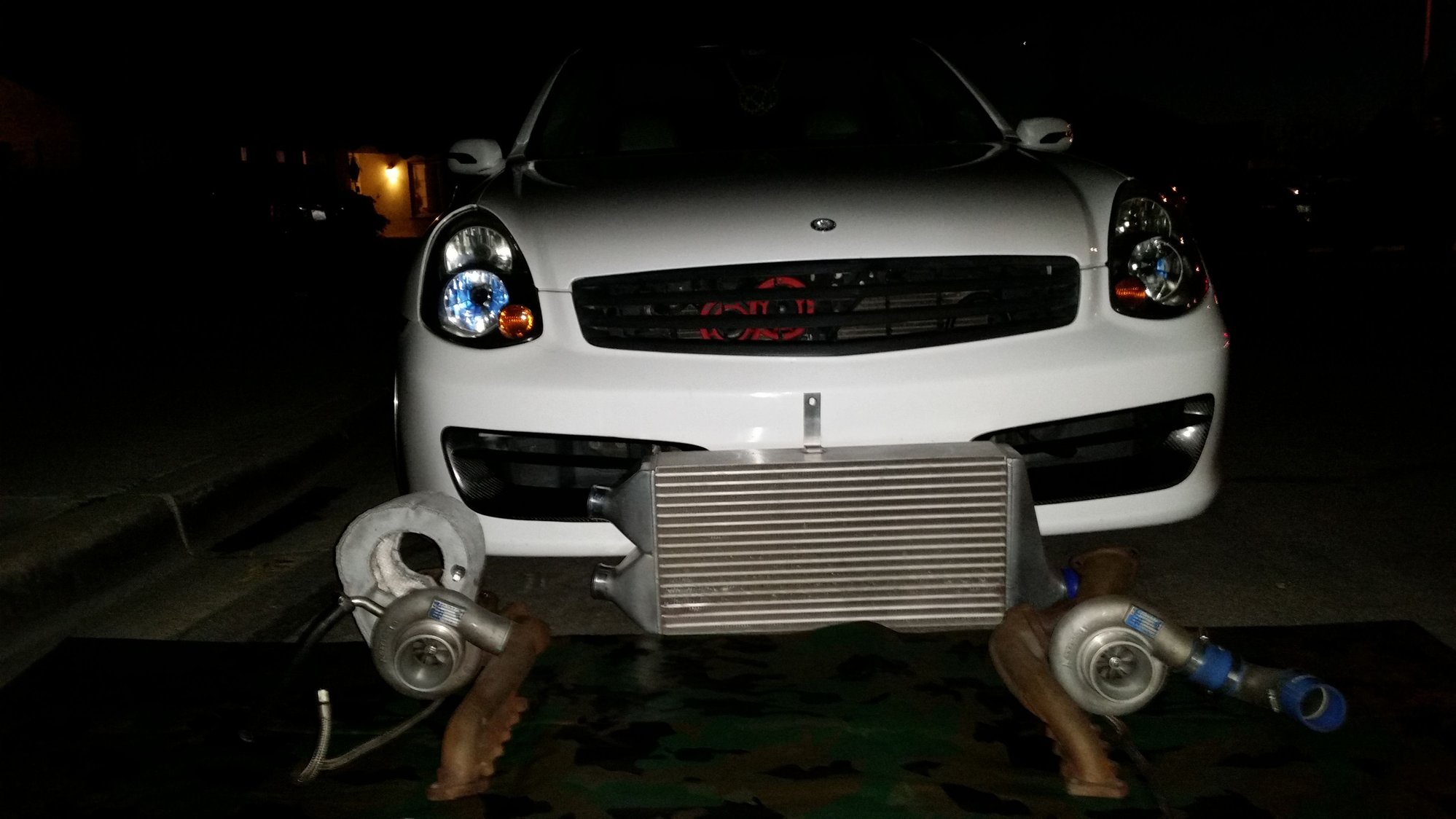

Greddy 18G (TD05) Twin Turbo Kit w/new gaskets and K&N filters (RC-9350)
ARP studs for manifolds

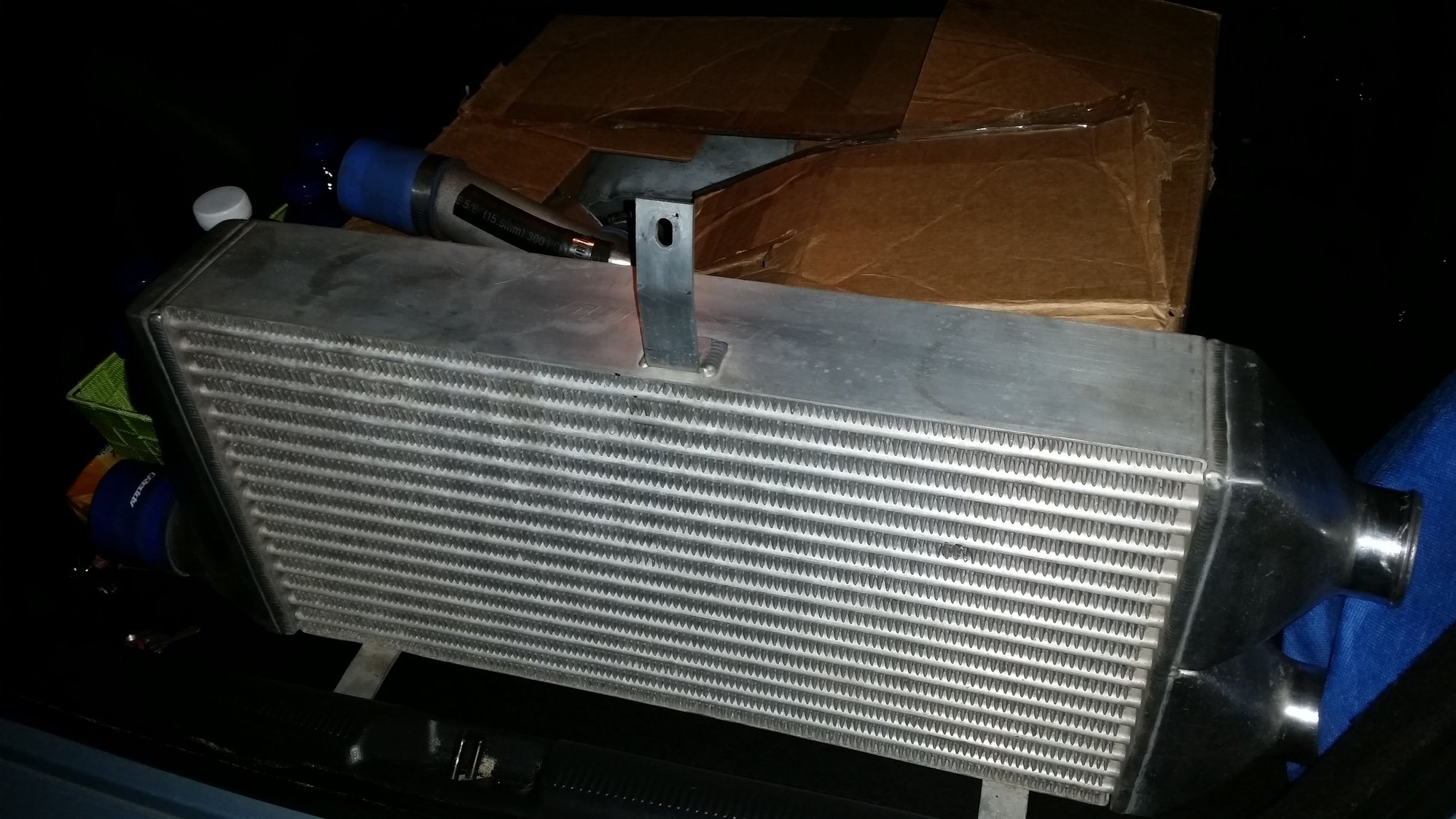

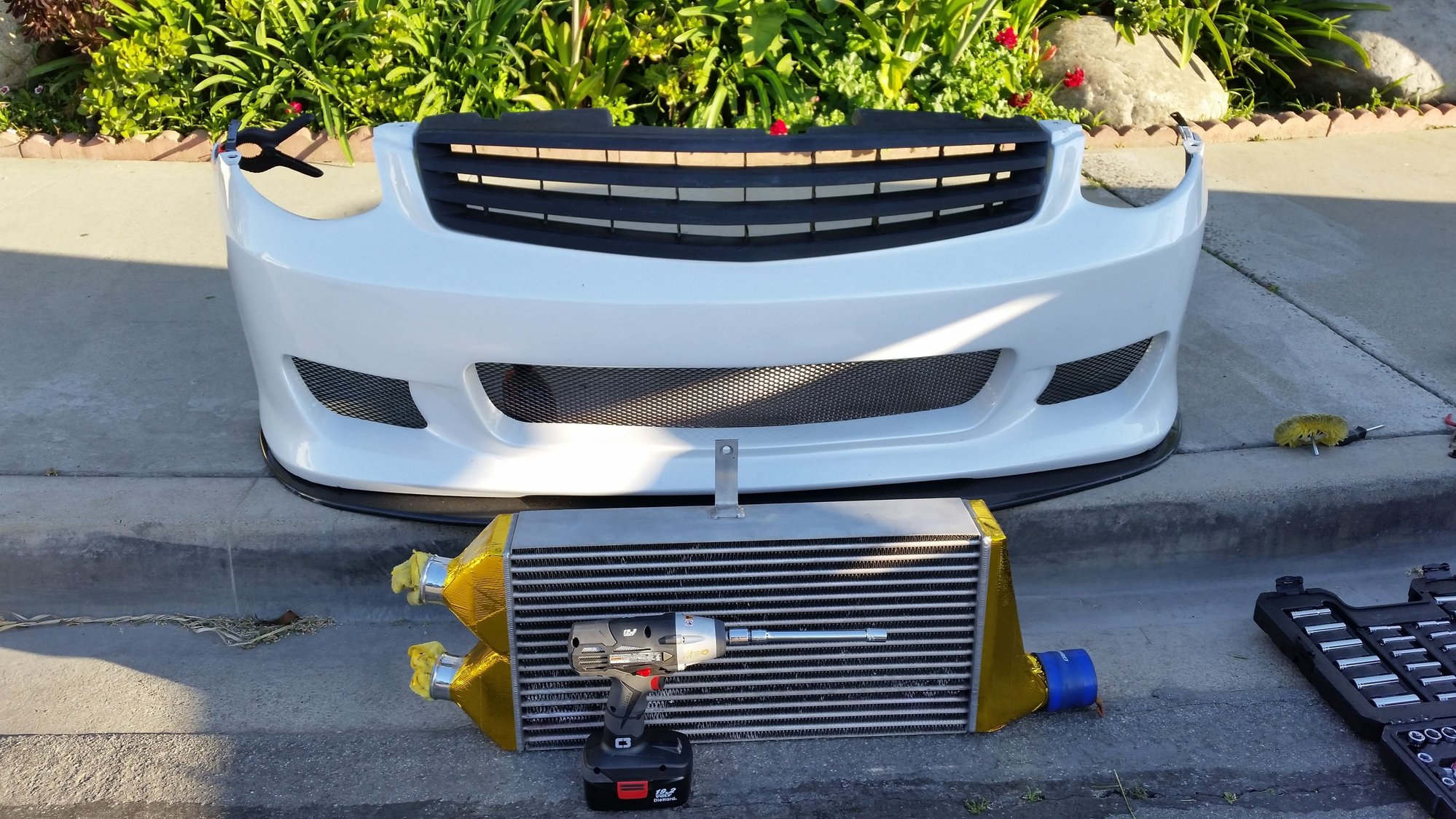

Greddy Upgraded Intercooler
HKS SSQV BOV
Twin Greddy wastegates
½” Motordyne Plenum Spacer
Motordyne aramid gasket
3” Custom Dual exhaust (coming soon
Fluidampr Crank Pulley w/UR lightweight pulleys
Custom Jegs Vented Oil Catch Can
Nissan REV-UP Oil Pump
Mishimoto Radiator Cap
Nismo oil cap
Osiris GT MAF Sensor
Z1 idler delete kit
Z1 Six-Shooter Solid Aluminum Motor Mounts
Berk Technology HFC
New O2 Sensors
Fuel Management
DeatschWerks 600cc injectors
AEM 320lph fuel pump
AAM fuel Return System (coming soon)
Magnafuel regulator
AAM Fuel Pressure Gauge Adapter
Cooling Management
25-Row Dual Pass Mishimoto Oil/PS Coolers MMOC-25DP
Stainless steel braided lines with fittings
Greddy Thermostatic Oil Block Adapter
Mishimoto Silicone Hose Kit
DEI Titanium and Gold Wrap Intake & Hot Pipes
Mishimoto 52mm aluminum racing radiator
Mishimoto dual 14” slim fans
Z1 Pathfinder Cooling Mod
Nismo Thermostat
Greddy Aluminum Air Diversion Panel
Gauges / Controls
Apex'i AVCR Boost Controller
Innovate SCG1 Boost controller + Wideband Gauge
Greddy Multi D/A Gauges Full Set
Blitz dual turbo timer
HKS Knock Sensor
Dyno Tune - Osiris UPREV by Church Automotive
Fuel Map, IG: Ignition Timing Map, SPD: Speed Limiter, REV: Rev limiter
Boost Limiter, BC: Boost Control, VTC: Variable Timing Control
Increased torque management
Transmission

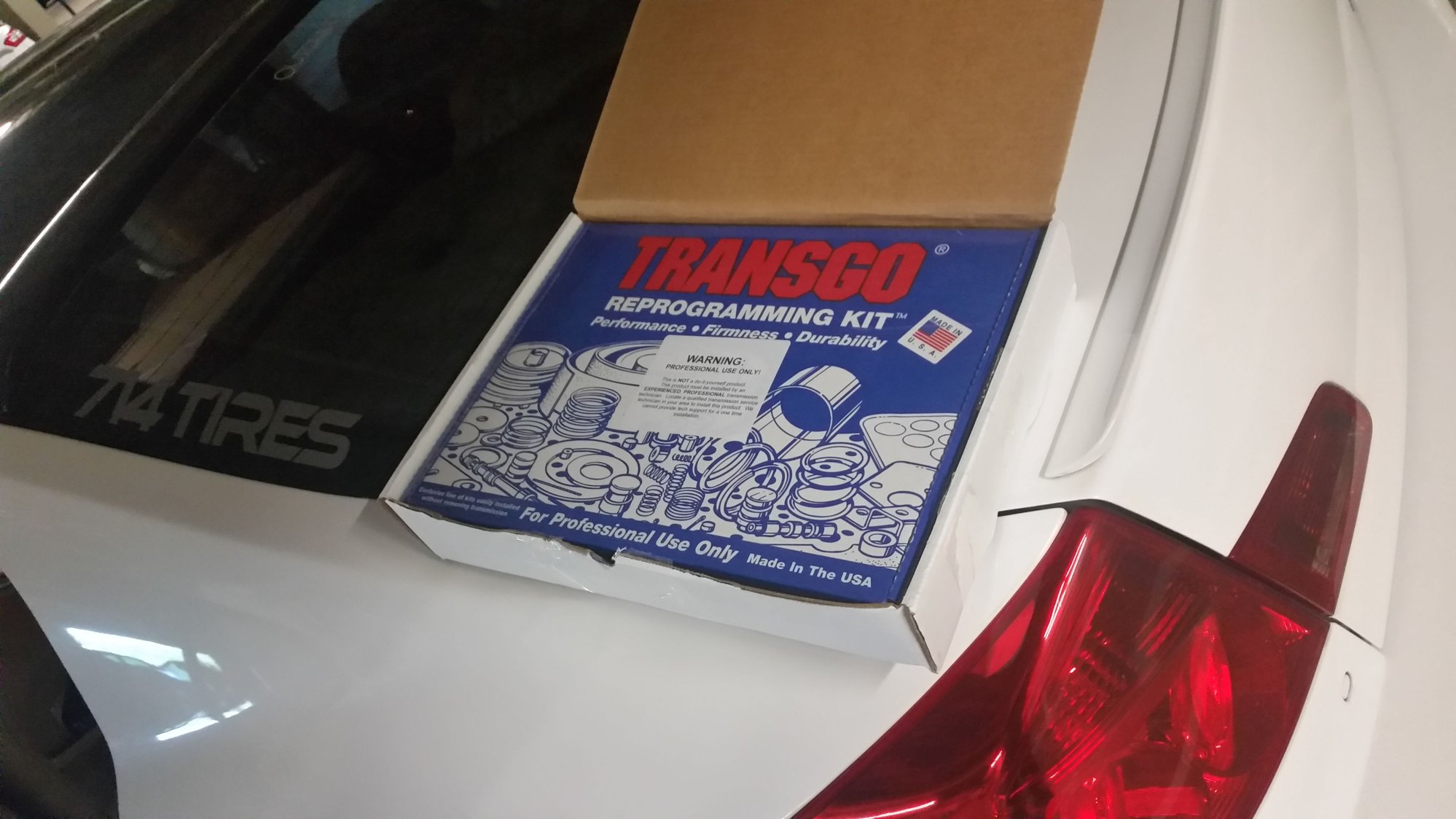

TransGo RE5R05A-HD2 Valve Body Kit

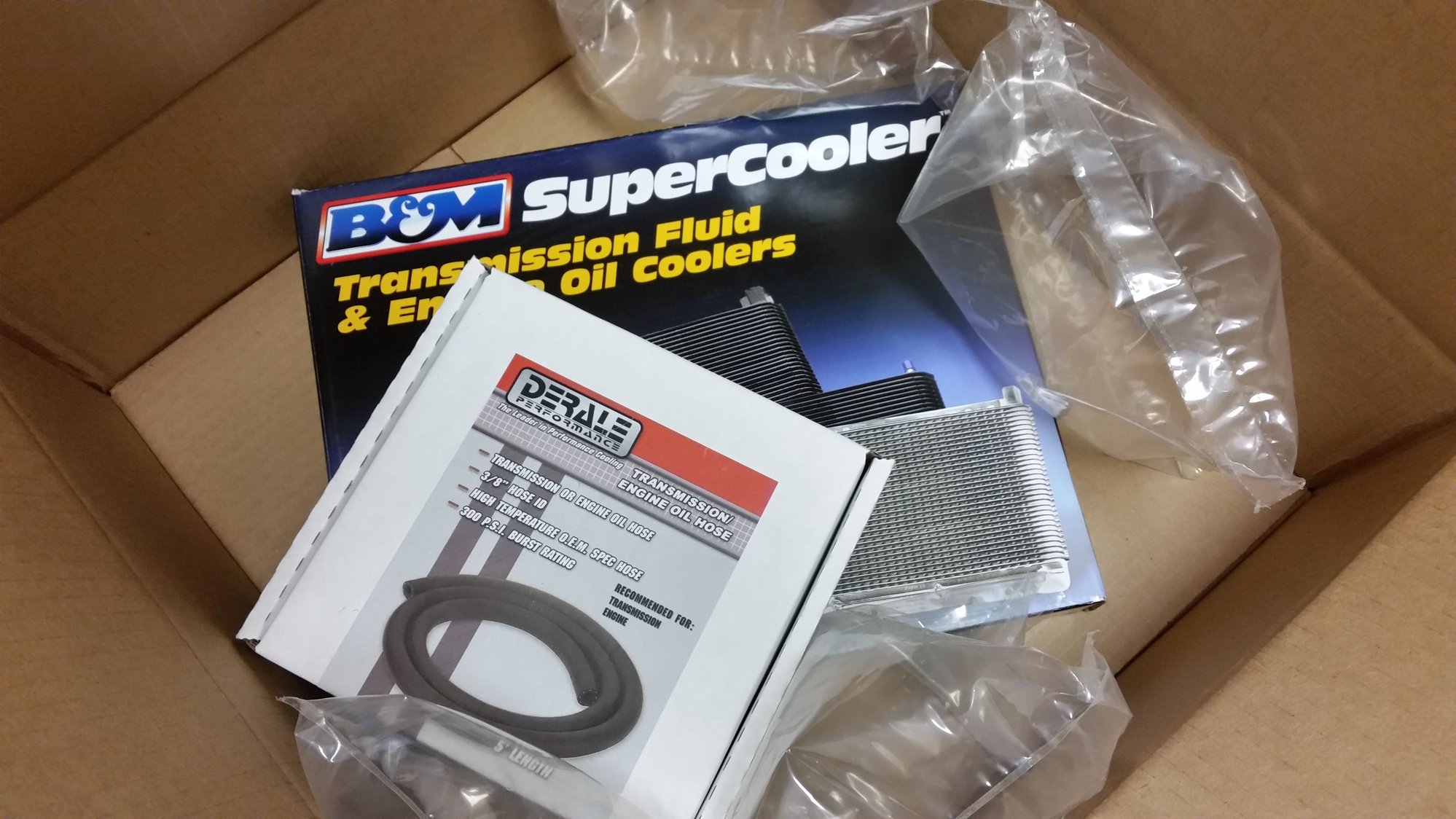

B&M transmission cooler
Suspension
Complete Energy Suspension Front Control Arm Bushing Kit
BC Racing Type BR Coilovers
GT Spec Strut Tower Bar

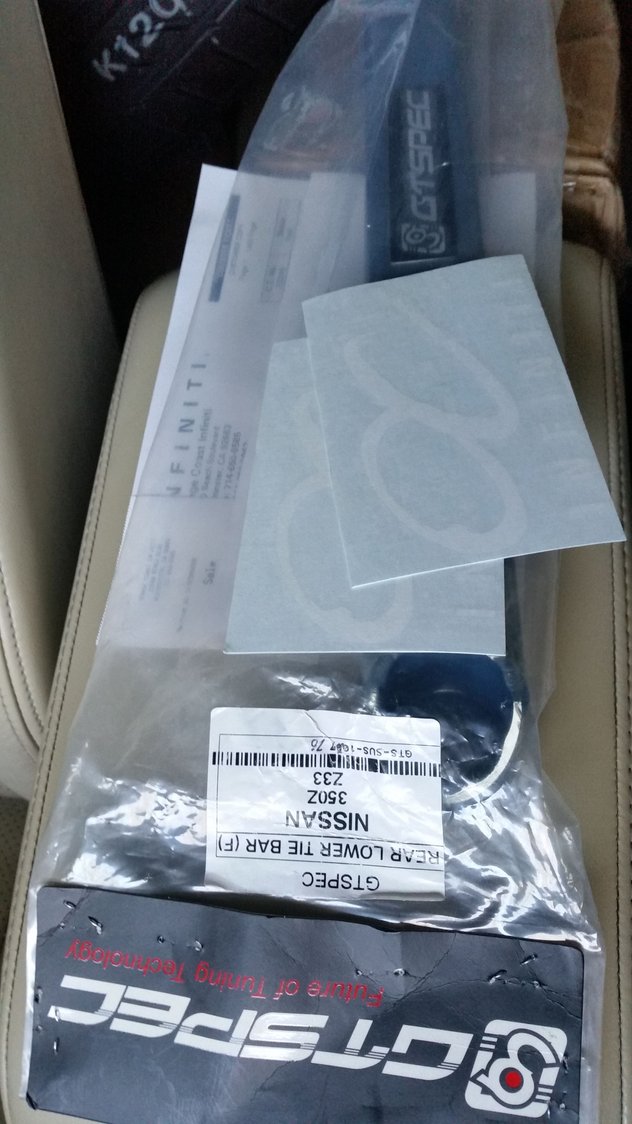

GT Spec Lower Tie Brace
Hotchkis Sway Bars – replace with SPC
Ichiba Rear Camber Arms
SPL Rear Sway Bar End Links
Phantom Cup Kit by Platinum VIP (coming soon)
Exterior
Custom Paint – Starfire Pearl White
Hikkatadori Front Bumper with lip & carbon fiber ducts
Nisrookie sideskirts
Molded Nismo rep rear lip
Custom built headlights
Custom painted tail lights

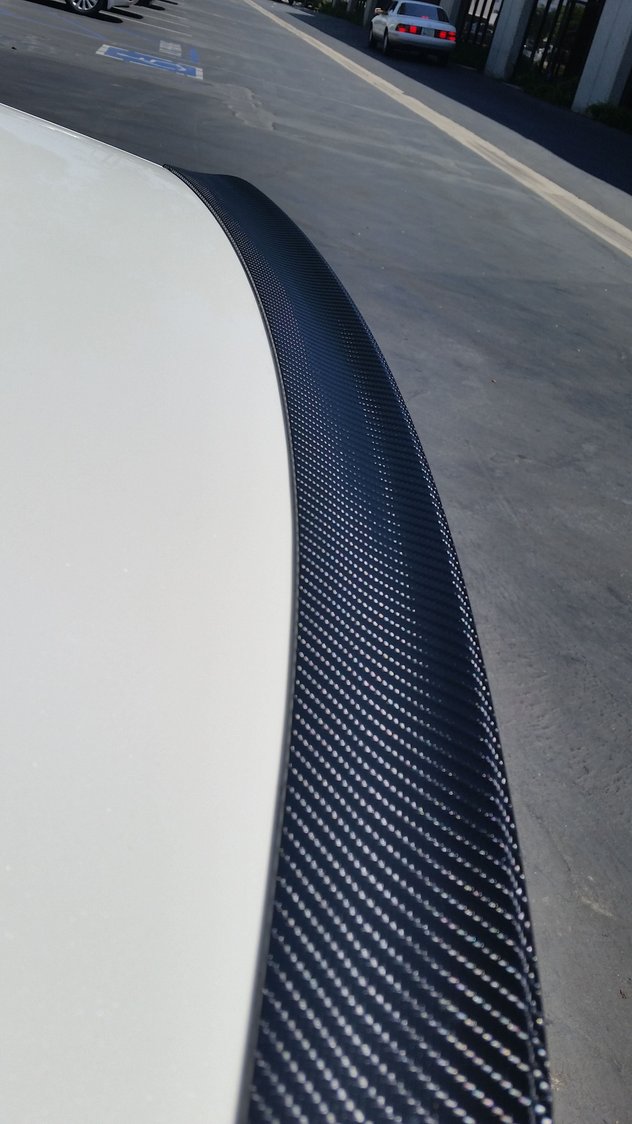

Custom CF lip spoiler
Kakumei roof spoiler
JDM Nissan window visors
IVD Custom LED 3rd brake light
Custom chrome mirror trim
Garson VIP emblem
Carbon fiber pillar trim

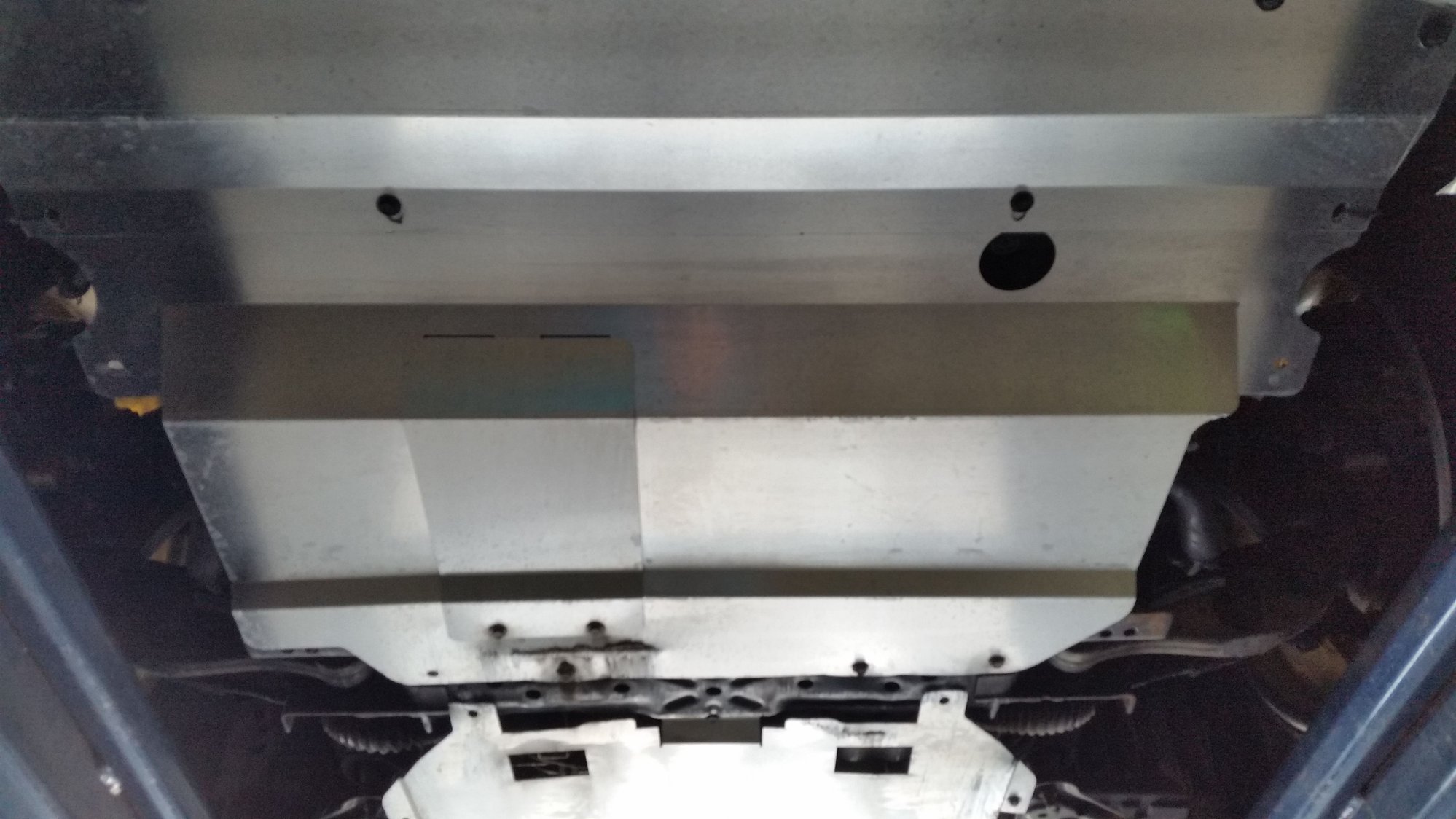

Tollboothwilley aluminum under tray engine shield
Custom carbon fiber hood vents
Outcast Garage carbon fiber sideskirt lip
Wheels + Tires
20” Avant Garde F120
Hankook Ventus V12
Brakes
Akebono BBK conversion w/cross drilled/slotted rotors
Stainless Steel Brake Lines
Motul Brake Fluid
Interior
Junction Produce Tsuna
Junction Produce Pillows
Junction Produce Curtains
Junction Produce seatbelt covers
Show Quality Mods
Paint valve covers, core support, and shave engine bay
Full wire tuck harnesses + A/C Line tuck by R-Ryde (coming soon)
Custom Aluminum Coolant Canister
Custom Aluminum Power Steering Canister
Polished timing chain cover, plenum, VTC, and brackets by BaidPolish

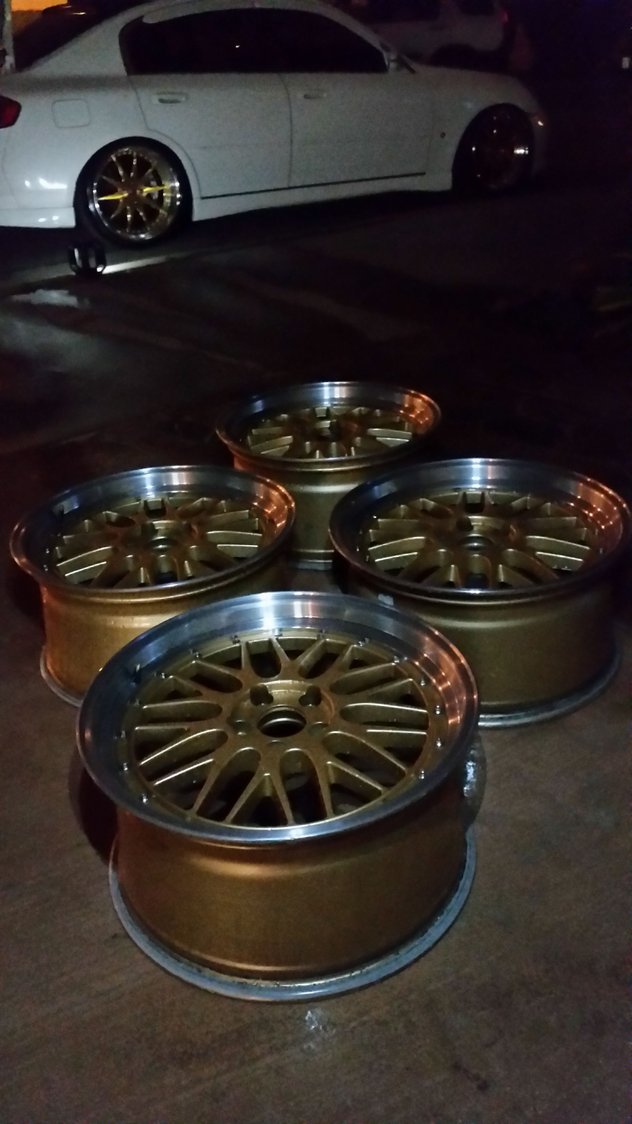

Sold my old wheels
AWD DYNO @CHURCH AUTOMOTIVE
GREDDY TD05 18G

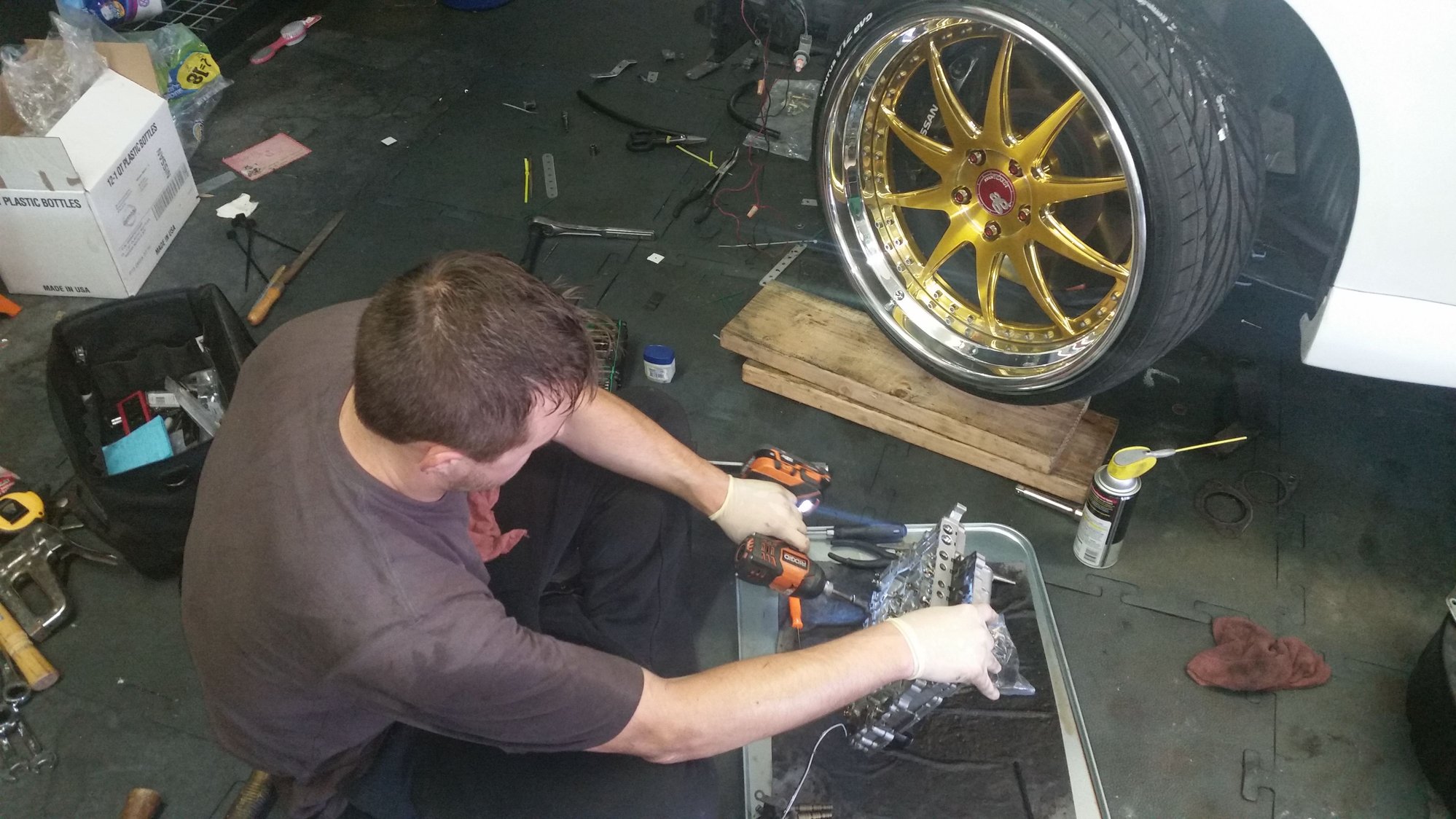

Grant Plummer installing valve body kit
