Engine, Drivetrain & Forced-Induction Have Technical Questions or Done Modifications to the G35? Find out the answer in here! (View All Posts)

How to spot a rev up engine *PICS*

Thread Tools

Search this Thread

Rate Thread

  #1
Old 05-31-2010, 03:46 AM
T3K_V35's Avatar
Registered User
Thread Starter
iTrader: (4)
Join Date: May 2010
Location: Dallas, TX
Posts: 315
Likes: 0
Received 2 Likes on 2 Posts
03' track... Soon to be race car.
How to spot a rev up engine *PICS*

Ok guys....after doing my research and alot of looking, I finally had the chance to view these two cars sitting next to each other. And i got pics this time to prove it.
The Rev up motor with 298hp has variable cam timing on the exhaust side as well as the intake side. The non-rev up motor with 280hp only has it on the intake side. So to put this to rest once and for all....here is the easiest way to tell.

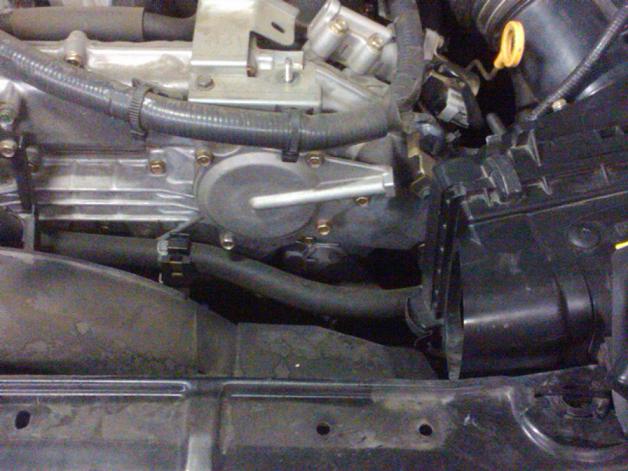

Attached Thumbnails How to spot a rev up engine *PICS*-non-revup.jpg   How to spot a rev up engine *PICS*-non-revupc.jpg   How to spot a rev up engine *PICS*-revup.jpg   How to spot a rev up engine *PICS*-revupc.jpg
The following users liked this post:
LowUFO (06-16-2014)
  #2
Old 05-31-2010, 03:53 AM
Skaterbasist's Avatar
Retired SuperMod
iTrader: (16)
Join Date: Feb 2006
Location: Southern Cali --> 818
Posts: 13,068
Received 101 Likes on 66 Posts
A much easier way is to know whether you are driving an 05-07 Coupe 6MT or 05-06 Sedan 6MT.

  #3
Old 05-31-2010, 03:53 AM
T3K_V35's Avatar
Registered User
Thread Starter
iTrader: (4)
Join Date: May 2010
Location: Dallas, TX
Posts: 315
Likes: 0
Received 2 Likes on 2 Posts
03' track... Soon to be race car.
Btw....as a side note. I also learned that the rev up motor only came in the 05-07 G35 w/6spd mt, and the anniversary edition 350Z. So for those of us that were lucky/un-lucky (depending on how you feel about it) enough to get one with this engine, its actually kinda rare.

  #4
Old 05-31-2010, 03:54 AM
bigc's Avatar
Wings Nation

iTrader: (59)
Join Date: Feb 2007
Location: SoCal
Posts: 7,931
Received 625 Likes on 456 Posts
i love this thread already

  #5
Old 05-31-2010, 03:56 AM
T3K_V35's Avatar
Registered User
Thread Starter
iTrader: (4)
Join Date: May 2010
Location: Dallas, TX
Posts: 315
Likes: 0
Received 2 Likes on 2 Posts
03' track... Soon to be race car.
True....but this post was aimed more at guys who dont know much about their car. Im just trying to help, seeing as how i have better resources available then most.

The following users liked this post:
jpne13 (10-07-2022)
  #6
Old 05-31-2010, 03:59 AM
Jairen's Avatar
Registered User
iTrader: (18)
Join Date: Mar 2009
Location: Bremerton, Wa
Posts: 3,544
Received 149 Likes on 113 Posts
Originally Posted by T3K_V35
Btw....as a side note. I also learned that the rev up motor only came in the 05-07 G35 w/6spd mt, and the anniversary edition 350Z. So for those of us that were lucky/un-lucky (depending on how you feel about it) enough to get one with this engine, its actually kinda rare.
Also in the 06 350Z with 6MT.

  #7
Old 05-31-2010, 12:16 PM
Calvin's Avatar
Overglorified Altima
iTrader: (65)
Join Date: Jun 2006
Location: Chicago
Posts: 53,506
Received 187 Likes on 128 Posts
Originally Posted by T3K_V35
True....but this post was aimed more at guys who dont know much about their car. Im just trying to help, seeing as how i have better resources available then most.
For guys that don't know much about cars, I think it's easier for them to distinguish revups vs. non-revups by transmission and year....

All 5ATs - non-revup
03-04 6MTs - non-revup
05-07 6MTs - revup


The following users liked this post:
Justice06RR (01-13-2017)
  #8
Old 05-31-2010, 12:25 PM
thescreensavers's Avatar
Mr.202?

iTrader: (10)
Join Date: Apr 2009
Location: WPB
Posts: 9,751
Received 204 Likes on 162 Posts
^ Yep

There is no easier way. But if you were to look at a car in person thats good way.

  #9
Old 05-31-2010, 01:38 PM
ZMonkey11's Avatar
Registered User
Join Date: May 2009
Location: Plano, TX
Posts: 207
Likes: 0
Received 0 Likes on 0 Posts
Well a lot of people are changing their headlights and taillights in their 05 and down G35s, so it's a little hard to distinguish what year each G35 is now. So, just from looking at an outside of a G35 coupe, you have to somewhat guess now.

Very informative and good post.

  #10
Old 05-31-2010, 01:42 PM
Calvin's Avatar
Overglorified Altima
iTrader: (65)
Join Date: Jun 2006
Location: Chicago
Posts: 53,506
Received 187 Likes on 128 Posts
Originally Posted by ZMonkey11
Well a lot of people are changing their headlights and taillights in their 05 and down G35s, so it's a little hard to distinguish what year each G35 is now. So, just from looking at an outside of a G35 coupe, you have to somewhat guess now.

Very informative and good post.
Take a look inside - done.

If you have a 6MT w/ brushed aluminum interior - revup.

If you have a 6MT with black or silver/gray interior - non-revup.

If you have a 5AT - non-revup.

  #11
Old 05-31-2010, 02:25 PM
djamps's Avatar
Registered User
iTrader: (8)
Join Date: Dec 2008
Location: Annapolis, MD
Posts: 3,602
Received 75 Likes on 55 Posts
Good post... it's not always the case where you know what car it came from. What if you're doing a swap or picking up a junkyard engine and don't want to take the word of the junkyard guy? Pics in this thread FTW.

  #12
Old 05-31-2010, 02:30 PM
Hotdawwgman's Avatar
Registered User
iTrader: (19)
Join Date: Feb 2008
Location: SoCal/Chicago at Heart
Posts: 7,054
Received 124 Likes on 109 Posts
turning into an epic thread! WOW!

  #13
Old 05-31-2010, 03:06 PM
ZMonkey11's Avatar
Registered User
Join Date: May 2009
Location: Plano, TX
Posts: 207
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Calvin
Take a look inside - done.

If you have a 6MT w/ brushed aluminum interior - revup.

If you have a 6MT with black or silver/gray interior - non-revup.

If you have a 5AT - non-revup.
True. But I was referring to only if you could only see the outside of the car.

Speaking of the interior, on the dash, it says REV right in the middle. That is revup engine specific correct?

  #14
Old 05-31-2010, 03:14 PM
Wrathernaut's Avatar
Gentle Manne of Leisure

iTrader: (5)
Join Date: Nov 2008
Location: Pennsylvania
Posts: 7,945
Received 1,036 Likes on 609 Posts
Rev-up:


Not Rev-up:
(sorry, no shot of the hazard button on 03-04 5AT).


Last edited by Wrathernaut; 05-31-2010 at 03:27 PM.
  #15
Old 06-01-2010, 07:36 AM
T3K_V35's Avatar
Registered User
Thread Starter
iTrader: (4)
Join Date: May 2010
Location: Dallas, TX
Posts: 315
Likes: 0
Received 2 Likes on 2 Posts
03' track... Soon to be race car.
I will give you that the intirior did change with the year models...but i agree, Alot more people are swapping parts from other year model. I even plan on putting 06 headlights, and 04 brembo brakes on my 05. I wont debate the year model + trans method. Just saying that this give definitive proof....The engine cant lie....and im sorry but popping the hood takes 2 seconds.
