G35 Coupe V35 2003 - 07 Discussion about the 1st Generation V35 G35 Coupe

Heeeeelp me please!!!

Thread Tools

Search this Thread

Rate Thread

  #1
Old 08-22-2015, 01:17 AM
G35forlife21's Avatar
Registered User
Thread Starter
Join Date: Aug 2015
Posts: 7
Likes: 0
Received 0 Likes on 0 Posts
Heeeeelp me please!!!

New to this so don't know how to make my own post I have a 06 g35 I was playing with the side marker took out bulb while was on and now it won't turn on or my inside lights (radio etc) license plate lights either HELLLLLP!!

  #2
Old 08-22-2015, 01:35 AM
Almightyone's Avatar
Registered User
iTrader: (1)
Join Date: Aug 2008
Posts: 217
Received 13 Likes on 12 Posts
Start checking fuses. Their is one behind the battery so you have to take all the covers off. Its either that one or the one in the drivers side panel beside the pedals.

  #3
Old 08-22-2015, 01:45 AM
G35forlife21's Avatar
Registered User
Thread Starter
Join Date: Aug 2015
Posts: 7
Likes: 0
Received 0 Likes on 0 Posts
yea I looked at them I check one by one under the driver seat any other thing or way I can fix it?

  #4
Old 08-22-2015, 01:50 AM
Almightyone's Avatar
Registered User
iTrader: (1)
Join Date: Aug 2008
Posts: 217
Received 13 Likes on 12 Posts
Did you check the fuse box behind the battery? Most likely it is a blown fuse in there. I had the same thing happen and it was in the box behind the battery.

  #5
Old 08-22-2015, 02:10 AM
G35forlife21's Avatar
Registered User
Thread Starter
Join Date: Aug 2015
Posts: 7
Likes: 0
Received 0 Likes on 0 Posts
ill check it out tomorrow with light but I really appreciate all your help !! I hope I just have to switch out the fuse and that's it fingers crossed*

  #6
Old 08-22-2015, 01:38 PM
wuzz-upp's Avatar
Registered User
Join Date: Apr 2014
Location: Florida
Posts: 298
Received 36 Likes on 34 Posts
Originally Posted by G35forlife21
ill check it out tomorrow with light but I really appreciate all your help !! I hope I just have to switch out the fuse and that's it fingers crossed*

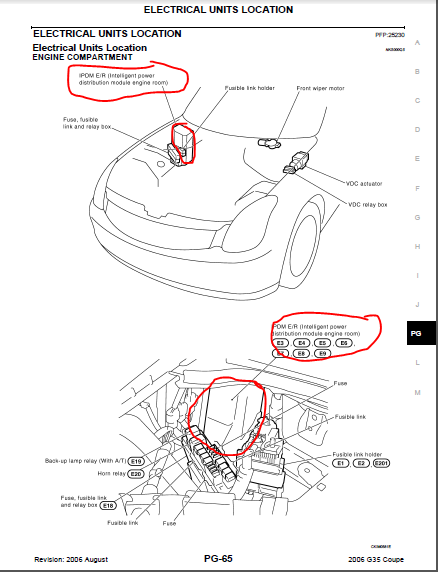

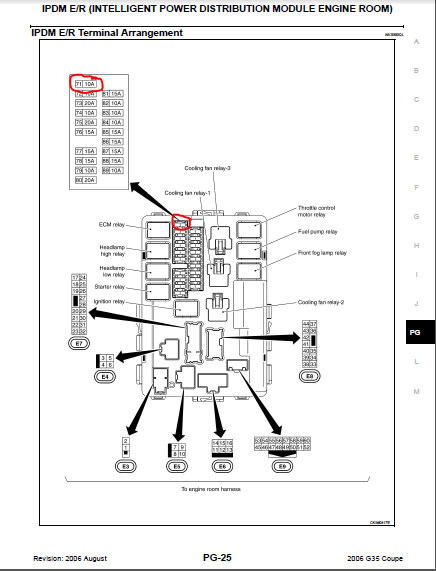

It is all going to be OK, you most likely blew the fuse. The 2006 wiring diagram shows it being a 10A fuse, # 71. It is located in the IPDM E/R, which is located inside a box behind the battery. See attached.

Attached Thumbnails Heeeeelp me please!!!-capture-2.png   Heeeeelp me please!!!-capture-3.png
  #7
Old 08-22-2015, 01:46 PM
G35forlife21's Avatar
Registered User
Thread Starter
Join Date: Aug 2015
Posts: 7
Likes: 0
Received 0 Likes on 0 Posts
Aye thank you very much just got it and did add-ons so when this went out it ruined my night didn't think it was so little going to check out the pics you sent, thanks again !!

  #8
Old 08-26-2015, 07:34 PM
knightro g35's Avatar
Registered User
Join Date: Mar 2014
Location: Southern Illinois
Posts: 72
Received 3 Likes on 3 Posts
Gotta be a fuse
