Hi, my 2007 g35 sedans horn won’t work and I’ve traced it down to either the clock spring or wiring from clock spring to the horn relay. I have no other electrical issues and all of my other steering wheel buttons work so I don’t think that it is the clockspring. Does anyone know what the wire color is from the clockspring to the horn relay and how do I find the break? I would really appreciate any help.
Interestingly, it seems you have two horn relays and two fuses #31 & #38. Check those first! Your horn FSM is here: https://www.nicoclub.com/service-man...2007%2Fhrn.pdf
Below the window, "click here to download a copy".
It looks like that wire from the coil to relay 1 starts as green, then passes through a GIANT wire-to-wire connector (pin-41) and is light green beyond that.

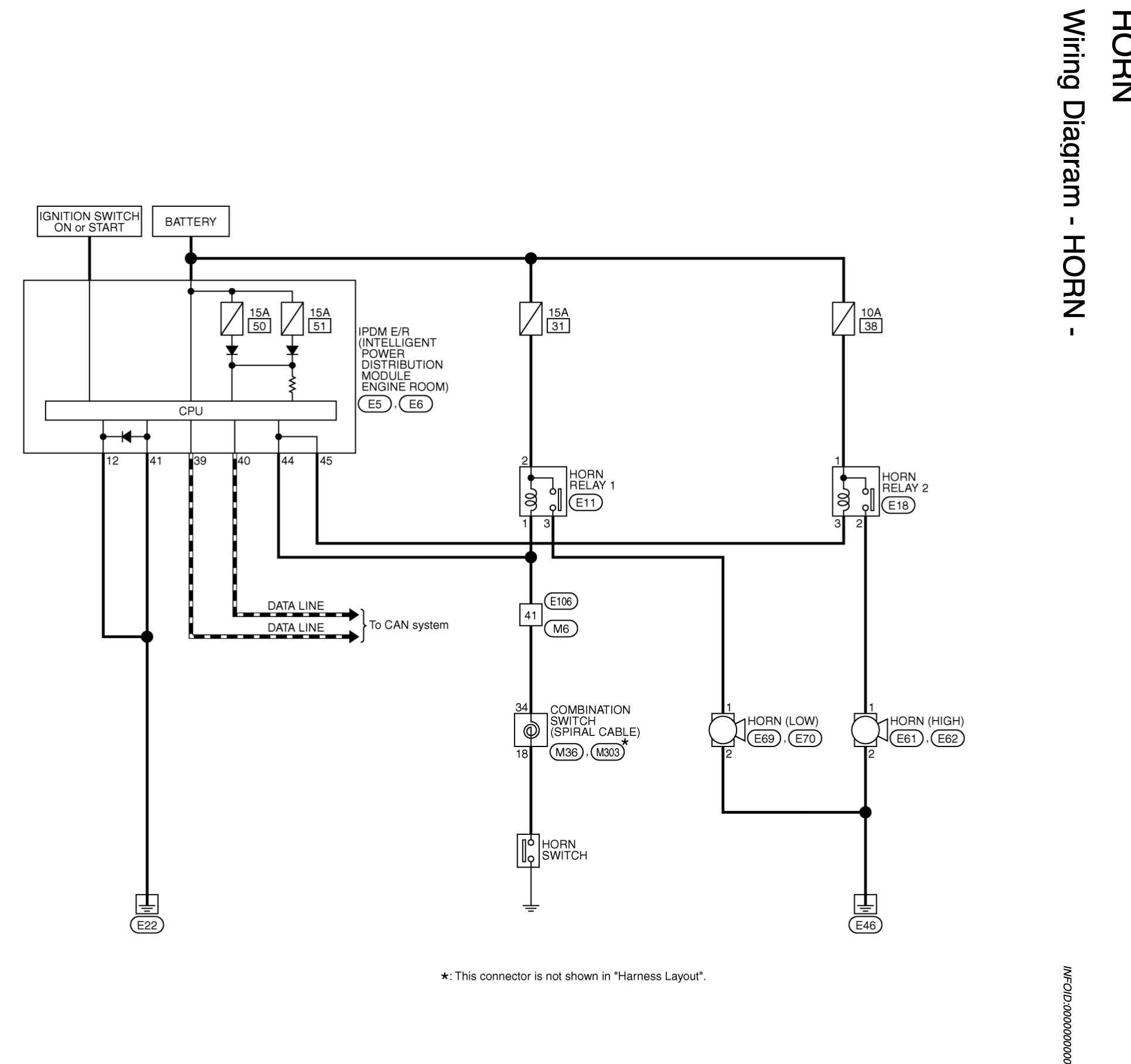

Meanwhile, here's a pic of the diagram.
Interestingly, it seems you have two horn relays and two fuses #31 & #38. Check those first! Your horn FSM is here: https://www.nicoclub.com/service-man...2007%2Fhrn.pdf
Below the window, "click here to download a copy".
It looks like that wire from the coil to relay 1 starts as green, then passes through a GIANT wire-to-wire connector (pin-41) and is light green beyond that.
Meanwhile, here's a pic of the diagram.
oh I see. Would you know the location of the second relay? I know one is in the battery bay in the relay box but where would the other one be?
OP, you should just go up one level from these individual section URLs and download the entire FSM. It'll do ya no harm. Once you have them all in one folder, start with the FWD file. It's the bookmarked table of contents, and will take you to whatever section you want to check out.
OP, you should just go up one level from these individual section URLs and download the entire FSM. It'll do ya no harm. Once you have them all in one folder, start with the FWD file. It's the bookmarked table of contents, and will take you to whatever section you want to check out.
