DIY: Front Bumper Removal
Oh I see what you mean. Those clips are a pain to remove lol, but you can do without removing them. Just pull back the rubber as far as you can until you can stick your wrench in there. If you want to remove those clips for easier access then make sure you keep a bunch of these with you since they break every time you take them off. I can't seem to find the clips online so you might wanna call riverside infiniti and ask them about it or go to your dealer.
project time!!!!
i wish i had found this DIY before i used someone elses lmao (the DIY for paint your headlights). he completely left out the last step with those last two bolts so i ended up ripping those whole plastic pieces right off the bumper lol
Registered User
Joined: Apr 2015
Posts: 3
Likes: 0
That last screw is giving me fits. There is a nut or something that it screws into that is loose. I cannot get it back all the way tight and I cannot get it out. There isn't enough room to get my finger behind it to isolate the nut. Anyone else run into this? Suggestions?
Great write-up. Thanks! I swapped my headlights today and it was way, way easier to remove the bumper than I expected it to be. Now I feel like a fool for putting it off for so long.
FYI the 03/04 sedans do not have the bolts in the last illustration (the ones under the rubber trim in the engine bay). Just the ten bolts on the bottom and the two around each side marker light, and the six fender clips that attach the bumper/grill to the radiator cover.
Also FYI those two-piece black plastic rivets are called "trim clip fasteners". Do a search on eBay for "Nissan trim clip" and you can get a bag of 50 of them for like $3 incl shipping. They break all the time so it's handy to have a few spares if you're the OCD type.
FYI the 03/04 sedans do not have the bolts in the last illustration (the ones under the rubber trim in the engine bay). Just the ten bolts on the bottom and the two around each side marker light, and the six fender clips that attach the bumper/grill to the radiator cover.
Also FYI those two-piece black plastic rivets are called "trim clip fasteners". Do a search on eBay for "Nissan trim clip" and you can get a bag of 50 of them for like $3 incl shipping. They break all the time so it's handy to have a few spares if you're the OCD type.
Tools Required:
There are a total of 16 bolts and 6 plastic clips holding the bumper.
You don't need to remove or loosen the radiator cover.
There are 10 bolts on the bottom (Marked A) that you will need to remove.
Note: If your car is slammed, you may need to lift the car using ramps or jack and jack stands to access these bolts. Use caution when lifting the car and never work under a car that is only supported by a jack.
Attachment 240394

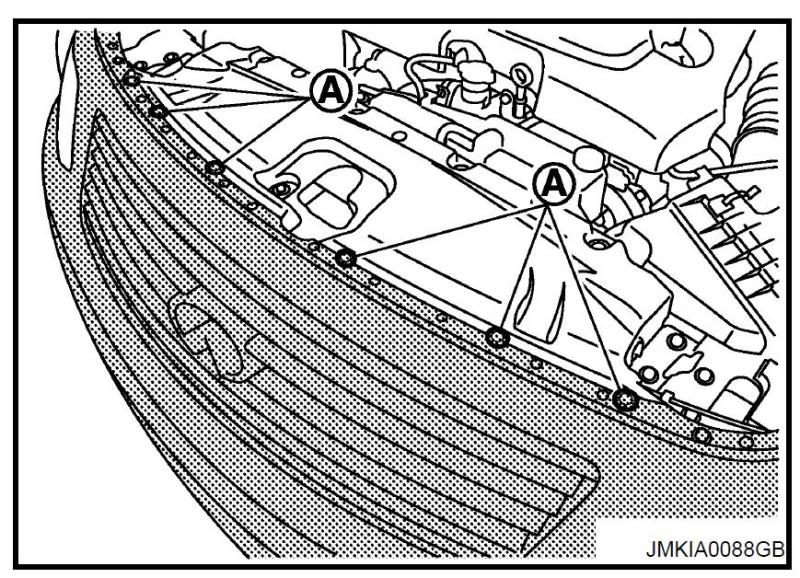

Then there are 6 clips holding the bumper to the radiator cover. remove those with a flat head screwdriver.
Attachment 240395

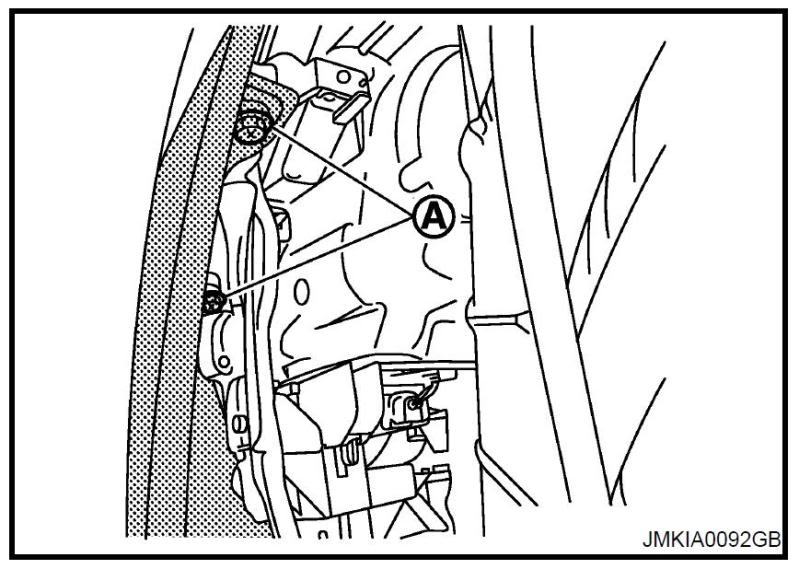

Turn the steering wheel to either side and remove 1 plastic clip on the wheel well lining to access the bolts inside. Once you pull back the lining you will need to use a long extension to remove two 10mm bolts. Do the same for both sides (Marked A)
Attachment 240396
Once that is done, there are 2 more bolts holding the bumper, 1 on each side.

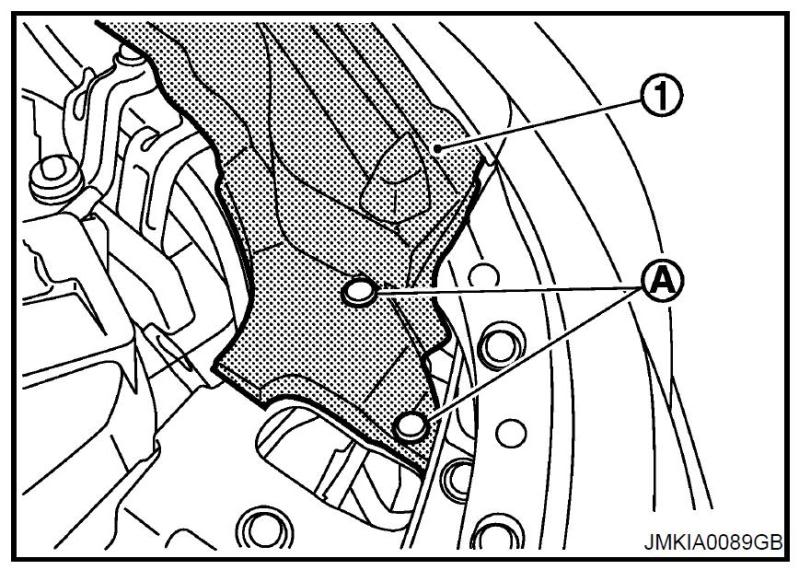

you will need to pull up the rubber seal on the side of the engine bay to access a 10mm bolt as shown below. You will need to use an extension here too. the first pic shows the location of the bolt behind the rubber seal. you don't need to remove the seal, just pull it back until you can stick your wrench in there. Do the same for both sides. (Marked 1)
Attachment 240397
Attachment 240398
Take extra care when pulling the bumper out to prevent scratches.
If your car has front parking sensors, pull the bumper out only SLIGHTLY. Just enough so you can access the sensors (4) and unplug them before you remove the bumper completely.
- Flat head screw driver
- 10mm socket wrench
- Socket extension
- Ramps or Jack stands (optional)
There are a total of 16 bolts and 6 plastic clips holding the bumper.
You don't need to remove or loosen the radiator cover.
There are 10 bolts on the bottom (Marked A) that you will need to remove.
Note: If your car is slammed, you may need to lift the car using ramps or jack and jack stands to access these bolts. Use caution when lifting the car and never work under a car that is only supported by a jack.
Attachment 240394
Then there are 6 clips holding the bumper to the radiator cover. remove those with a flat head screwdriver.
Attachment 240395
Turn the steering wheel to either side and remove 1 plastic clip on the wheel well lining to access the bolts inside. Once you pull back the lining you will need to use a long extension to remove two 10mm bolts. Do the same for both sides (Marked A)
Attachment 240396
Once that is done, there are 2 more bolts holding the bumper, 1 on each side.
you will need to pull up the rubber seal on the side of the engine bay to access a 10mm bolt as shown below. You will need to use an extension here too. the first pic shows the location of the bolt behind the rubber seal. you don't need to remove the seal, just pull it back until you can stick your wrench in there. Do the same for both sides. (Marked 1)
Attachment 240397
Attachment 240398
Take extra care when pulling the bumper out to prevent scratches.
If your car has front parking sensors, pull the bumper out only SLIGHTLY. Just enough so you can access the sensors (4) and unplug them before you remove the bumper completely.
How come the FSM for 06 coupe did not mentioned any bolt on the top like you illustrated in your last two diagram? also my engine bay do not have any rubber seal that needs to be lifted in order to access those. Are the G35 different in Kuwait?
Those who have an 06 coupe that have removed the front bumper before, can you confirm? advance thanks.
BANNED!!!
Joined: May 2017
Posts: 14,837
Likes: 2,497
From: Washington State
Coupe 6MT Premium RAS
How come the FSM for 06 coupe did not mentioned any bolt on the top like you illustrated in your last two diagram? also my engine bay do not have any rubber seal that needs to be lifted in order to access those. Are the G35 different in Kuwait?
Those who have an 06 coupe that have removed the front bumper before, can you confirm? advance thanks.
Those who have an 06 coupe that have removed the front bumper before, can you confirm? advance thanks.
Hahaha I'm so stupid. I figured out though and got it done over the weekend.
Last edited by deeliciousqueen; Jan 30, 2018 at 12:04 PM.
Registered User
Joined: Aug 2020
Posts: 13
Likes: 0
G35 Sedan
Hell My front end got smashed (front cover off, fender liner needs replacement, and all hardware)
I see many different names, types of clips, etc to reattach my front bumper cover.
Can someone please address a SIZE to these clips? Making it hard to buy the right one.
I am using the reco: https://www.ebay.com/itm/50Pcs-8mm-P...Cclp%3A2334524
But not sure? I see kits, but they don't seem to have enough clips. Very confusing to this stoner I tell ya! Like this kit doesnt have enough clips? "https://www.z1motorsports.com/front-...EaAu6jEALw_wcB"
etc. Thank you for the help.
I see many different names, types of clips, etc to reattach my front bumper cover.
Can someone please address a SIZE to these clips? Making it hard to buy the right one.
I am using the reco: https://www.ebay.com/itm/50Pcs-8mm-P...Cclp%3A2334524
But not sure? I see kits, but they don't seem to have enough clips. Very confusing to this stoner I tell ya! Like this kit doesnt have enough clips? "https://www.z1motorsports.com/front-...EaAu6jEALw_wcB"
etc. Thank you for the help.
Registered User
Joined: Feb 2018
Posts: 3,087
Likes: 445
From: LA, Cali
Hell My front end got smashed (front cover off, fender liner needs replacement, and all hardware)
I see many different names, types of clips, etc to reattach my front bumper cover.
Can someone please address a SIZE to these clips? Making it hard to buy the right one.
I am using the reco: https://www.ebay.com/itm/50Pcs-8mm-P...Cclp%3A2334524
But not sure? I see kits, but they don't seem to have enough clips. Very confusing to this stoner I tell ya! Like this kit doesnt have enough clips? "https://www.z1motorsports.com/front-...EaAu6jEALw_wcB"
etc. Thank you for the help.
I see many different names, types of clips, etc to reattach my front bumper cover.
Can someone please address a SIZE to these clips? Making it hard to buy the right one.
I am using the reco: https://www.ebay.com/itm/50Pcs-8mm-P...Cclp%3A2334524
But not sure? I see kits, but they don't seem to have enough clips. Very confusing to this stoner I tell ya! Like this kit doesnt have enough clips? "https://www.z1motorsports.com/front-...EaAu6jEALw_wcB"
etc. Thank you for the help.
