Need help wiring this into the BCM.



Did you see the install instructions on posts #262-264? As I recall, there was only one location that the BCM adaper plug would fit.



i see that but i am looking for the NS16FW to plug into the BCM. I looks like i have to strip the Black and red wire to plug it into the BCM



where do these plug in to the BCM



That I know if you get the whole kit it supposed to be a white connector not cables like that!! Anyone else?!

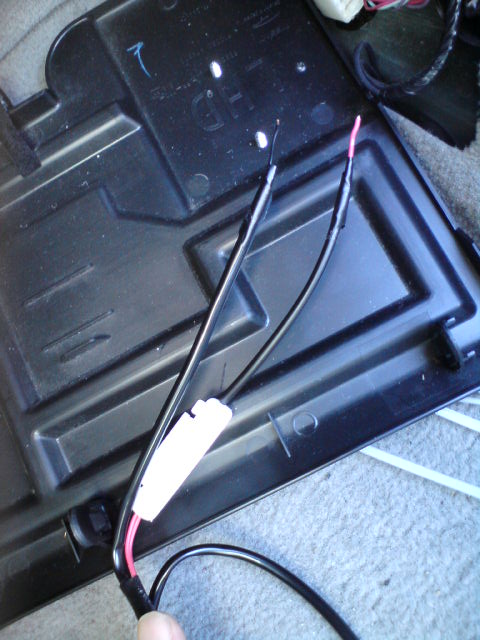

See post 262. Did you buy a used kit? The OEM kit requires no splicing. All "plug and play". The NS16FW and NS16MW were two ends of a T-harness. The other ends were smaller two wire plugs that lead to each kick plate. It appears like a few of your wires got cut by the previous owner . I have attached what I "THINK" happened based on the fact that I see a fuse in the wiring.

use my advice at your own risk. I am no electrician...



My wires didn't get cut from the previous owner. This is how i bought them. They are imported from Japan and they Illuminate Skyline.



It goes in there and everything is soo tight to get too. Then i have to find which one it goes into. There is like 12 different ones it can go into.



Ahh, that's cool. Hopefully someone else can chime in with advice. Don't know if the wire colors are the same in Japan. Did it even come with the T-harness?

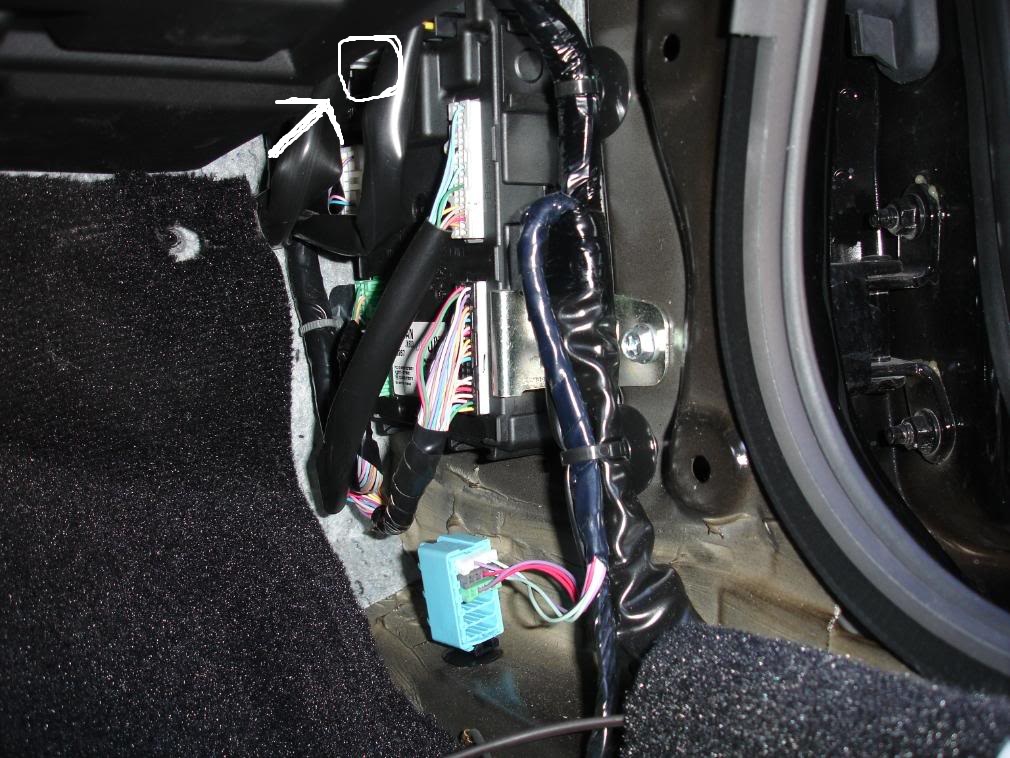

There is the very slight chance that one or both of the wires used for the US version don't break out of the BCM on the existing harness. Probably does, but it could be one the blank unused pins seen in the photo. Just thinking out loud.



Maybe someone one can take there's out and take a pix of it so i can see the set up in that white harness.



rick from ocinfiniti could answer that for you.hes a beast when it comes to parts



i talked to him already. He's going to help me out w/ this one. I wonder if he'll let me in the back w/ the mechanics?



Got them wired up today. Looks so awesome now!



Very nice! The grooves are a nice touch. Maybe post what the wiring solution was so others can learn from your install. Did the Japan set come with the T harness or did you have to actually tap into existing wires?



I have to pull everything apart to see how they did it. But it came w/ everything but have to tap into other wires.
