I was trying to cut the ignition coil wire and I was wondering which wire was the correct one to cut or if there is a diagram



What exactly do you mean, there is no ignition coil on these cars. Do you mean COIL PACK? There are six of them.



yes the coil packs where is the wire that connects all of them that I can cut



For the HR engine coil signal/transistor it's ECM pins 11 grey wire, 12 blue wire, 15 violet wire, 16 green wire, 19 sky blue wire, and 20 yellow wire for the ignition coils. They all use individual wires.

Coil primary side is IPDM fuse 50 (15 amp) which is then goes through the ECM relay, out on pin 53 white wire to the coil packs, intake cam solenoids, exhaust cam retarders, and EVAP solenoid.

What exactly are you trying to do? Why do you need to cut this wire?



Im trying to add a hotlicks flamethrower kit and it says to cut the ignition coil wire and Add the wire that they provide between the 2 so if you can check for me what exact wire to cut please and thank you.



You want the IPDM one off the ECM relay, white wire, pin 53.

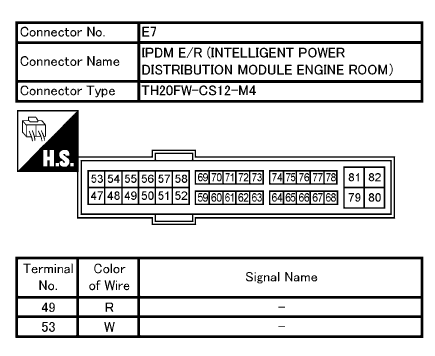

Here's a picture of the IPDM harness.



Most people just trace that white wire in the coil pack harness up a little ways past where they all join (factory splices off to each coil pack) then snip it there. It's a lot easier than taking the IPDM out but either would work.



I was trying to install the hotlicks flame kit and I was trying to know if there is a certain place to put the ground wire in the trunk because I put it on one of the screws where there are ground cables and when I use the flames the car shows at check and the shifting lights disappear from the dash and also shows the amber key sign
