Here's your quick reference, and I figured out a way where you don't need to cut your own shield, simply use the front shield that you would remove anyway and flip it horizontally so its direction of cutoff is ----\____ not ____/----- And glue over top of the rear shield.

Hope the pictures help.



Thanks alot!
When looking close at arrows both the front sheild with the screw holes and the rear are connected as one piece and are ---\___, are you saying remove both these ---\____ and then flip horizontal? The the screw holes will be facing the other side unless you bend the concave back teh other way ? but then the flat screw hole part wont bent back to how it is now?

And then as you glue it back on, is to that bottom flat bit you see in the pic where the base of the bigger red arrow is?

and finally can i still do this CM mod to it?

Thanks once again I have my lights now so ill open them up on weekend and take pics



I forgot to mention i got strafe v2 headlight and thought it would be same inside, obviously not!!

so this may make it easier...



and the cut off


what does that other little bit of metal do in pic 2?

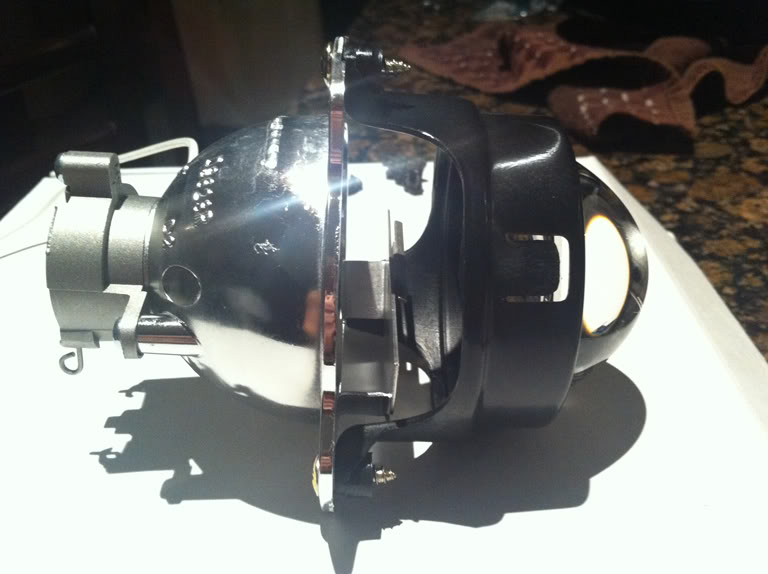

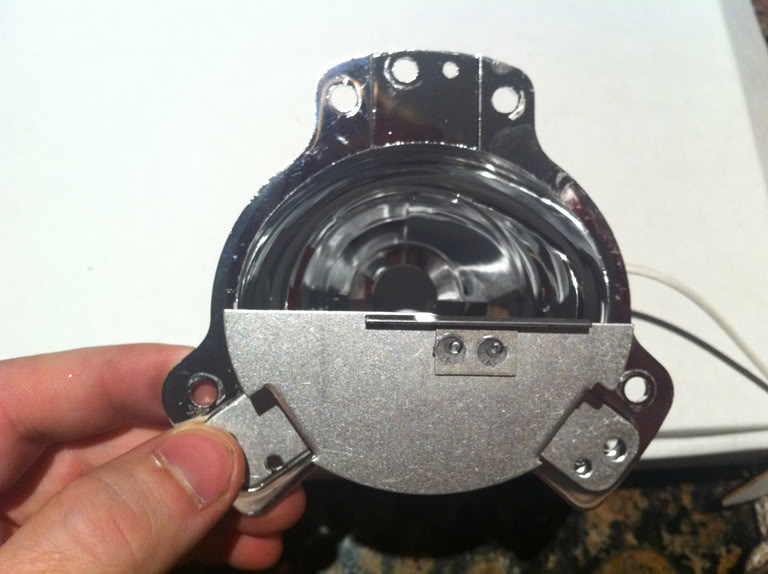

Looking from inside the projector

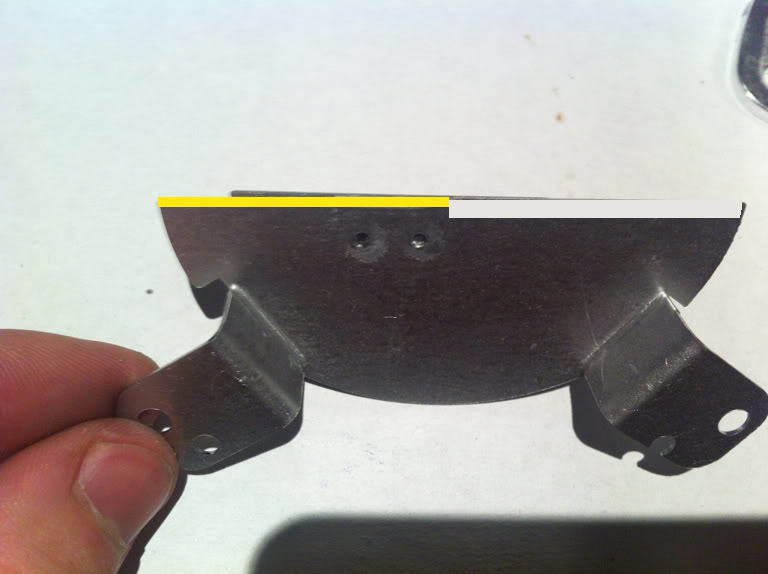

So easy as gluing a bit of metal where the yellow is and then cutting where the white is?

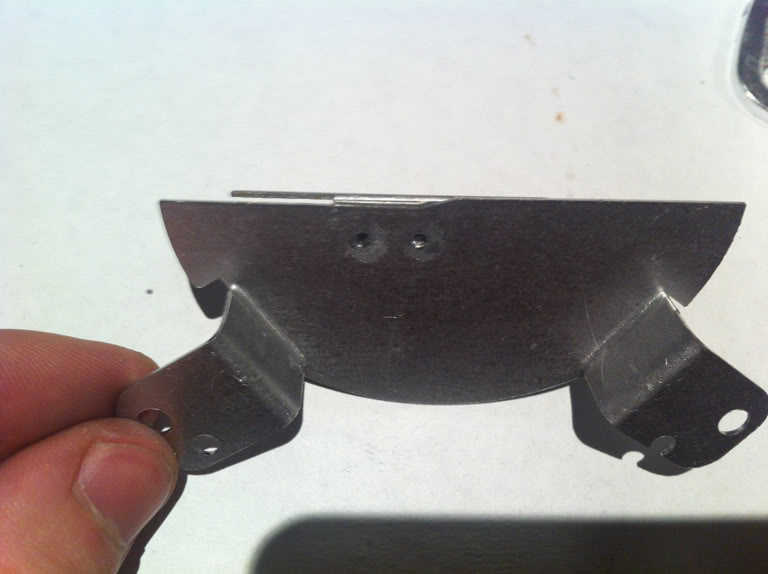

would i need to extend that bit of metal in pic 2 so its at the same length to the edge as in pic 1?



Any other suggestion of improving light output and improving this ?

Also low beam uses H1 Philips H1 12258, any idea of brightest replacement?
Something like this?
http://www.ebay.com.au/itm/GENUINE-P...ht_3136wt_1168

Thanks



Perhaps H1 HID replacement. The shield you have, you would need to add another shield on it, currently it's ___/----- you need it to look ----\____



H1 is the high beam, uses D2S as low beam i think...
so your saying get a HID H1 kit? any suggestions on which one

I get the ----\___ bit (refering to my last picture) just cut where the white bit is and glue more metal to fill up the yellow section) so its ----\____ but what about that other bit of metal on the other side? how its closer to the edge with the ----/____ would i need to remove it and move it across to other side or what?

Thanks again Ivory GT
i see u are a vendor, do u sell bulbs still ?



celica lens swap looking for feed back maybe something to make it better?


Uploaded with ImageShack.us



Adjust the curve of the shield until the sides are flat and push/pull the center of the shield until the cutoff is focused.



Hi Paul. I tried messaging you but seems like your inbox is full

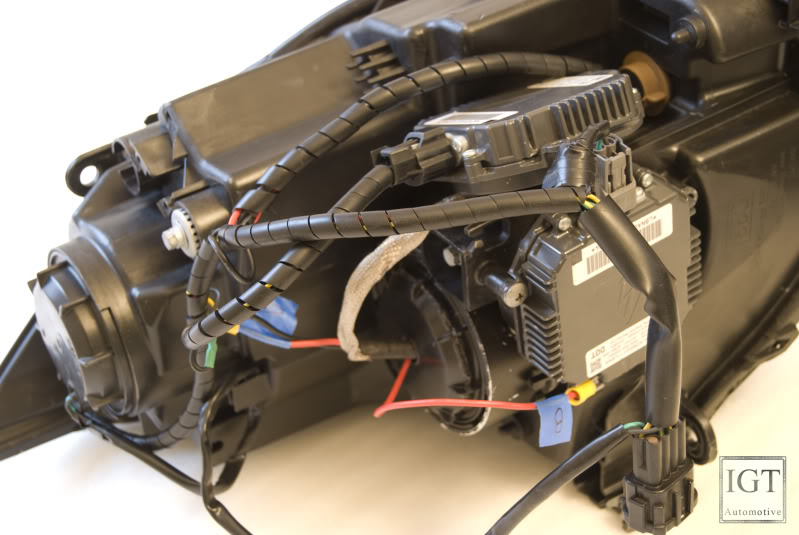

Where's a good spot I mount the second ballast?

Thanks!



the area directly behind the cover of the bottom projector. on the outside of the housing.



Any pictures?





You're the man!



I will be modifying mine this fall.. at least that is the budgetted plan .



Urbanengineer do you understand what he is talking about beacuse I lost.



What are you confused about here? His choice of background is uber confusing (blinds warped in the lens).

He is showing what the modified mounting is like.
