LED under glove box/steering wheel help
Originally Posted by k@osx71
I have a question, when doing this did you guys have to take off the center console and shifter console?
No I didn't, and I dont think you need to at all
Originally Posted by pCHILLEN
I cant seem to locate this harness. None of the harness in the BCM looks like this one. I have 03 cope 6spd. I located the purple/red and red/black wires. But they are in slots of harness compared to the pic shown. So does the wires colors vary from year to year? Or are they all the same and I just have to tap into the wires that are that color? thanks
Good Qustion.
I think Deftronix has 04 or 05 G35, so his BCM Harness is different than yours ( I too have the 03 coupe)
Simply just tap the purple/red and red/black wire then you are done!
Good luck
PLEASE help...
hey guys, finally got the courage to do this today, but as expected, i could not finish a car project once again. i have an 03 coupe A/T and cannot locate the harness that has the R/B & P/R wires. i know some of you have had this problem and have managed to find it with no problem. im attaching a pic so please feel free to identify where this thing is supposed to be, thanks guys!
<a href="http://s159.photobucket.com/albums/t140/eldgebroni/mods/?action=view¤t=DSC02557.jpg" target="_blank"><img src="http://i159.photobucket.com/albums/t140/eldgebroni/mods/DSC02557.jpg" border="0" alt="Photobucket"></a>
<a href="http://s159.photobucket.com/albums/t140/eldgebroni/mods/?action=view¤t=DSC02557.jpg" target="_blank"><img src="http://i159.photobucket.com/albums/t140/eldgebroni/mods/DSC02557.jpg" border="0" alt="Photobucket"></a>
Originally Posted by eldgebroni
hey guys, finally got the courage to do this today, but as expected, i could not finish a car project once again. i have an 03 coupe A/T and cannot locate the harness that has the R/B & P/R wires. i know some of you have had this problem and have managed to find it with no problem. im attaching a pic so please feel free to identify where this thing is supposed to be, thanks guys!
ok, so i finally got around to install these lights but went a different route and installed it with a switch. as for the switch location, i took out my cig. lighter plug, and installed the switch in the cig lighter housing which was a perfect fit (of course i took the plug off from the cig lighter). so no wires show, and the switch looks perfectly snug. i like~
ok, so i finally got around to install these lights but went a different route and installed it with a switch. as for the switch location, i took out my cig. lighter plug, and installed the switch in the cig lighter housing which was a perfect fit (of course i took the plug off from the cig lighter). so no wires show, and the switch looks perfectly snug. i like~
Thanks Guys!
-WoW
Originally Posted by k@osx71
ok, so i finally got around to install these lights but went a different route and installed it with a switch. as for the switch location, i took out my cig. lighter plug, and installed the switch in the cig lighter housing which was a perfect fit (of course i took the plug off from the cig lighter). so no wires show, and the switch looks perfectly snug. i like~
Then you don't need to use a switch. In this setup, you can either control the ON & OFF or just set it as AUTO from the Dome Light switches.
I will post a video of my revised setup tonight. Thanks to ImSteveO for the directions.
Here is the video of my revised LED under glove.
<embed width="448" height="361" type="application/x-shockwave-flash" wmode="transparent" src="http://i170.photobucket.com/player.swf?file=http://vid170.photobucket.com/albums/u266/2K6G35/DIY/OUTPUT_MVI_6823.flv">
As you can see from the video, the blue LEDs are automatically ON/OFF when I open/close the doors. I control the AUTO ON/OFF from the Dome Light switch. I also can turn them ON/OFF by pushing the left side dome light.
Seemless setup!!
<embed width="448" height="361" type="application/x-shockwave-flash" wmode="transparent" src="http://i170.photobucket.com/player.swf?file=http://vid170.photobucket.com/albums/u266/2K6G35/DIY/OUTPUT_MVI_6823.flv">
As you can see from the video, the blue LEDs are automatically ON/OFF when I open/close the doors. I control the AUTO ON/OFF from the Dome Light switch. I also can turn them ON/OFF by pushing the left side dome light.
Seemless setup!!

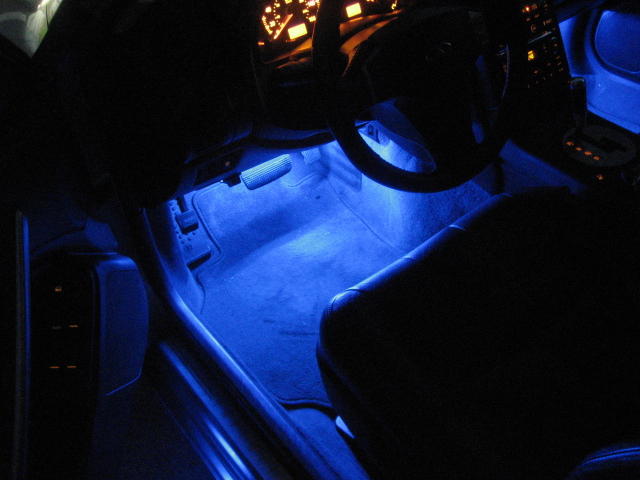

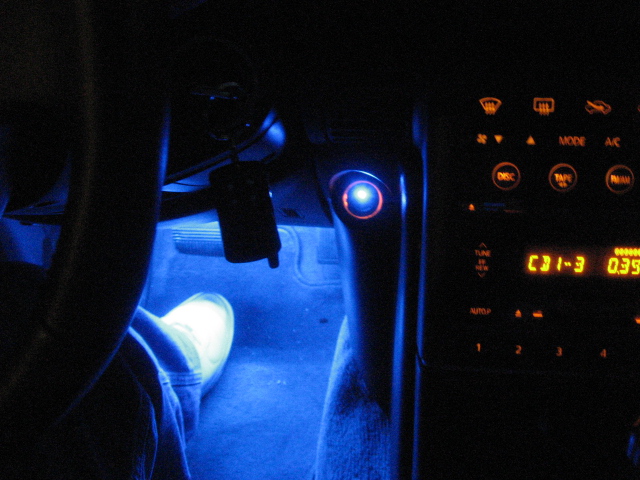

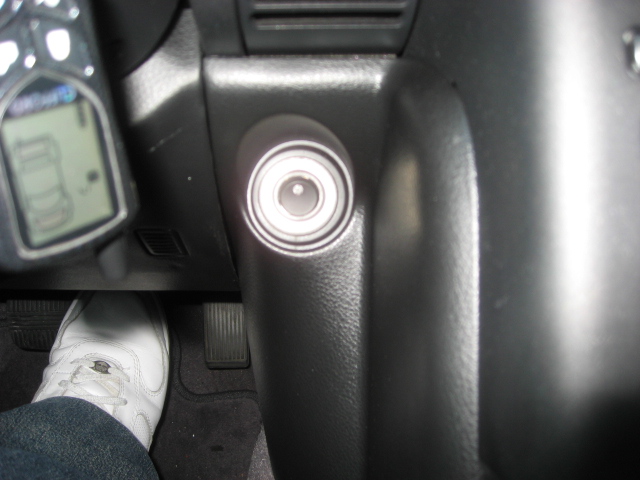

I've attached the pics for my setup. first pic is with the lights on, second is a pic of the switch when its on and the third pic is a daytime shot of the switch in the cig. lighter plug. This setup was actually very easy, no cutting no nothing, the switch fits perfectly in the cig. lighter plug, you just have to disconnect and remove the power plug.
