Wrathernaut's Double-Din Installation FAQ, Shopping and Resource List

Reply




  #2071
Old 04-05-2018, 05:23 PM
O6G
O6G is offline
Registered User
Join Date: Mar 2018
Posts: 6
Thanked 0 Times in 0 Posts
Almost done, big thanks to Wrathernaut!


Reply With Quote
  #2072
Old 04-06-2018, 12:06 AM
Wrathernaut's Avatar
Gentle Manne of Leisure
Thread Starter
iTrader: (5)
Join Date: Nov 2008
Location: Very Southern Arizona
Posts: 7,814
Thanked 952 Times in 560 Posts
Originally Posted by O6G View Post
Almost done, big thanks to Wrathernaut!

Yep. That's the standard gap. Use the Scosche trim ring or some black felt to fill it in!

Reply With Quote
  #2073
Old 04-08-2018, 02:29 PM
sybertel's Avatar
Registered User
Join Date: Jun 2003
Posts: 188
Thanked 0 Times in 0 Posts
I have read all pertinent posts and reviewed youtube’s on the radio removal/repair/reinstall and Double Din aftermarket install. My 03, G35, radio and DVD player work well. Occasionally my AC turns on and locks up on its own but rarely if I keep it on all the time.

I prefer original stock look and audio system but am trying to get ahead of any possibly worsening problem.

I am buying a new DD JDM OEM dash housing/cover (kit) and Kenwood DDX6904S. Evidently the JDM nor radio come with any radio mounting brackets. Has anyone found these mounting brackets or info on how to fabricate them?

Is the Scosche trim piece the best/only way to go to achieve a “factory installed” look for the DD radio with JDM OEM housing/cover (kit)?

Evidently, this radio comes with an antenna adapter. To get good standard FM reception do I need to add an antenna amplifier, if so any recommendations?

Thank you in advance for any help on my questions.

Reply With Quote
  #2074
Old 04-09-2018, 06:15 AM
Registered User
Join Date: Feb 2018
Location: LA, Cali
Posts: 576
Thanked 39 Times in 36 Posts
Your car already has an antenna signal amplifier. You will have to supply power to it or else u will get shitty reception trying to pick up radio signals.

Reply With Quote
The Following User Says Thank You to Scorpi0 For This Useful Post:
sybertel (04-09-2018)
  #2075
Old 04-09-2018, 11:26 PM
Wrathernaut's Avatar
Gentle Manne of Leisure
Thread Starter
iTrader: (5)
Join Date: Nov 2008
Location: Very Southern Arizona
Posts: 7,814
Thanked 952 Times in 560 Posts
Originally Posted by sybertel View Post
I have read all pertinent posts and reviewed youtube’s on the radio removal/repair/reinstall and Double Din aftermarket install. My 03, G35, radio and DVD player work well. Occasionally my AC turns on and locks up on its own but rarely if I keep it on all the time.

I prefer original stock look and audio system but am trying to get ahead of any possibly worsening problem.

I am buying a new DD JDM OEM dash housing/cover (kit) and Kenwood DDX6904S. Evidently the JDM nor radio come with any radio mounting brackets. Has anyone found these mounting brackets or info on how to fabricate them?

Is the Scosche trim piece the best/only way to go to achieve a “factory installed” look for the DD radio with JDM OEM housing/cover (kit)?

Evidently, this radio comes with an antenna adapter. To get good standard FM reception do I need to add an antenna amplifier, if so any recommendations?

Thank you in advance for any help on my questions.
The only real pertinent posts you need to read are 1-3 of this this thread. No brackets are required. Again... first three posts. If you have the JDM trim and climate controls, you don't need anything else. The scosche trim piece isn't anything special, it's just the easiest way to get some thin, black, textured plastic that fits well. You can use black felt to fill the gap, you can use black neoprene foam... anything really to fill the gap is fine.

If you got an antenna adapter, it's part of a package deal from your seller, that radio needs the antenna adapter listed in the parts list in the first post. You don't need an antenna amplifier. If you did, again... it would be in the first post.

Reply With Quote
The Following User Says Thank You to Wrathernaut For This Useful Post:
sybertel (04-10-2018)
  #2076
Old 04-13-2018, 12:13 PM
sybertel's Avatar
Registered User
Join Date: Jun 2003
Posts: 188
Thanked 0 Times in 0 Posts
DD Install Update

Found that the Kenwood DDX 6704S does not fit in the JDM OEM DD dash cover. It is just 1/16 of an inch to wide as other Kenwoods seem to be. Mounting it flush seems to require filing down the dash cover or the radio face plate. Neither seems to be a good solution. The included Kenwood trim cover would hide most of this but is not particularly appealing. Does anyone have a suggestion to resolve this or it the Scosche trim piece a good way to get an OEM install appearance?

Thank you in advance for any suggestions,experience, or pics showing how this was resolved.

Reply With Quote
  #2077
Old 04-13-2018, 12:27 PM
Registered User
iTrader: (3)
Join Date: Sep 2008
Location: NYC
Posts: 184
Thanked 12 Times in 12 Posts
Originally Posted by sybertel View Post
DD Install Update

Found that the Kenwood DDX 6704S does not fit in the JDM OEM DD dash cover. It is just 1/16 of an inch to wide as other Kenwoods seem to be. Mounting it flush seems to require filing down the dash cover or the radio face plate. Neither seems to be a good solution. The included Kenwood trim cover would hide most of this but is not particularly appealing. Does anyone have a suggestion to resolve this or it the Scosche trim piece a good way to get an OEM install appearance?

Thank you in advance for any suggestions,experience, or pics showing how this was resolved.
It fits, I have a similar unit. Your gonna have to do some Dremel. Dremel off numbs on the back iff the jdm DD, and Dremel the sides of the the trim to fit inside the back of the jdm dd.

Reply With Quote
The Following User Says Thank You to ErikNYC For This Useful Post:
sybertel (04-14-2018)
  #2078
Old 04-14-2018, 05:26 AM
Registered User
Join Date: Feb 2018
Location: LA, Cali
Posts: 576
Thanked 39 Times in 36 Posts
Originally Posted by sybertel View Post
DD Install Update

Found that the Kenwood DDX 6704S does not fit in the JDM OEM DD dash cover. It is just 1/16 of an inch to wide as other Kenwoods seem to be. Mounting it flush seems to require filing down the dash cover or the radio face plate. Neither seems to be a good solution. The included Kenwood trim cover would hide most of this but is not particularly appealing. Does anyone have a suggestion to resolve this or it the Scosche trim piece a good way to get an OEM install appearance?

Thank you in advance for any suggestions,experience, or pics showing how this was resolved.
I set my Kenwood on the ground and forced the JDM trim over it. It was tight, but it did slide in.

Reply With Quote
The Following User Says Thank You to Scorpi0 For This Useful Post:
sybertel (04-14-2018)
  #2079
Old 04-14-2018, 12:11 PM
sybertel's Avatar
Registered User
Join Date: Jun 2003
Posts: 188
Thanked 0 Times in 0 Posts
Smile

Looking at the solutions provided above, I like the look of the black Kenwood trim plate placed behind the JDM OEM dash cover. It looks a bit recessed but there are no gaps when centered. Plus the black Kenwood trim plate does not stick out like a sore thumb as it does when mounted on top of the JDM DD dash cover. Radio and KW trim actually slip in OK behind the JDM DD dash cover w/o any modifications (application of mounting brackets not verified) .

Only question remains is will the unit still fit depth wise as that makes the unit about 6.75 inches deep (adds about ½ inch more depth)?

Thank you to everyone that has been kind enough to reply. This question is probably more difficult to answer but I would appreciate any advise before attempting some mods that are irreparable.

Reply With Quote
  #2080
Old 04-14-2018, 06:57 PM
Registered User
Join Date: Feb 2018
Location: LA, Cali
Posts: 576
Thanked 39 Times in 36 Posts

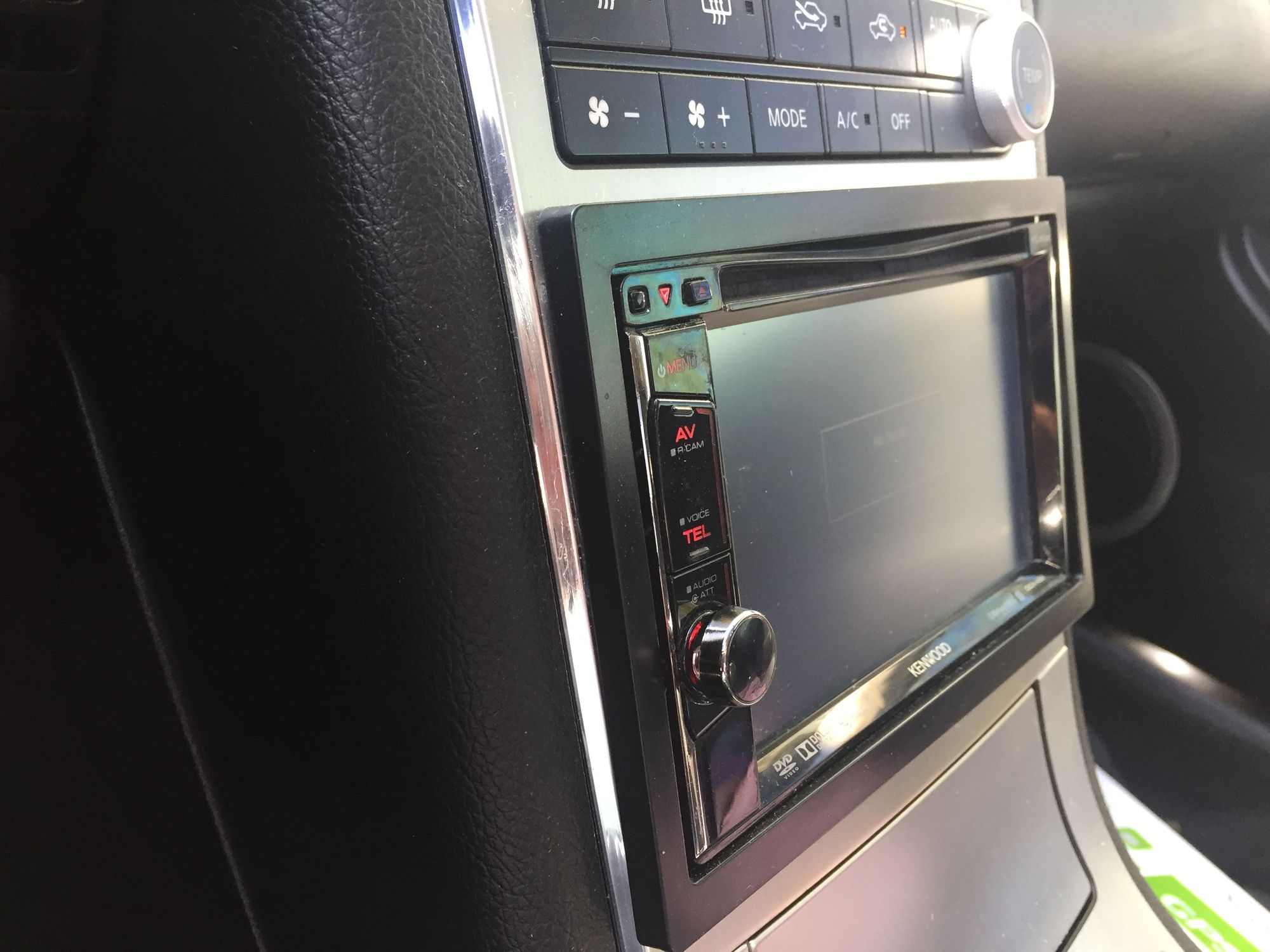

There is plenty of space behind the head unit. U could probably push it all the way until it falls in if u really wanted to. Here is mine mounted on top of the JDM trim. I did have to drill new holes into the mounting bracket to keep the angle of the screen to sit flush with the trim ring. I think it looks good.






Last edited by Scorpi0; 04-16-2018 at 05:50 AM.
Reply With Quote
The Following User Says Thank You to Scorpi0 For This Useful Post:
sybertel (04-15-2018)
  #2081
Old 04-15-2018, 03:34 PM
sybertel's Avatar
Registered User
Join Date: Jun 2003
Posts: 188
Thanked 0 Times in 0 Posts
Nice looking install. Thank you so much for the helpful info and pic. Looks like the new Kenwood DDX 6904s unit will fit w/suggested mods. It has quite a few advantages over the stock unit. I like the idea of a backup camera.

BTW: With 94K on my 03-6MT I am having the front bumper and front wheels repainted to remove any rock chips/scratches. This will complete its front end restore to look like new plus new grill and windshield installed. I would like to get at least 5 more years driving it as I can not find another car I like to drive as much.

Reply With Quote
  #2082
Old 04-16-2018, 05:48 AM
Registered User
Join Date: Feb 2018
Location: LA, Cali
Posts: 576
Thanked 39 Times in 36 Posts
Thanks. I actually uploaded 4 pics....not sure why the rest arent showing up.

Does the new head unit youre looking at come with a backup camera?

Reply With Quote
  #2083
Old 04-18-2018, 11:39 AM
sybertel's Avatar
Registered User
Join Date: Jun 2003
Posts: 188
Thanked 0 Times in 0 Posts
No. But it does come with mounting brackets, a trim bezel, antenna connector, and wiring. It supports a back up camera but I need to buy one and get it installed.

Reply With Quote
  #2084
Old 04-26-2018, 08:19 PM
Registered User
iTrader: (2)
Join Date: Jul 2009
Location: Kansas City
Posts: 145
Thanked 3 Times in 3 Posts
Am I going to have to mod this Metra dash kit to get this Pioneer AVH-200EX to fit flush? Little nerve racking to have to take a Dremel to a $150 piece of plastic, but I'll do if I have to. Any other ideas?

Attached Thumbnails Wrathernaut's Double-Din Installation FAQ, Shopping and Resource List-img_1516.jpg
Reply With Quote
  #2085
Old 04-27-2018, 07:49 AM
Registered User
Join Date: Feb 2018
Location: LA, Cali
Posts: 576
Thanked 39 Times in 36 Posts
Originally Posted by 4mermarine View Post
Am I going to have to mod this Metra dash kit to get this Pioneer AVH-200EX to fit flush? Little nerve racking to have to take a Dremel to a $150 piece of plastic, but I'll do if I have to. Any other ideas?
You shouldnt have to. I think you're trying to install it backwards, which makes it more difficult.

Lay the Metra trim on the floor, facing up. Grab your head unit and insert the rear end first. Might take a bit of pushing and wiggling...but it should go in.

Might also make it easier if you do it on a soft surface, like some grass. Thats how I did it.

Reply With Quote
